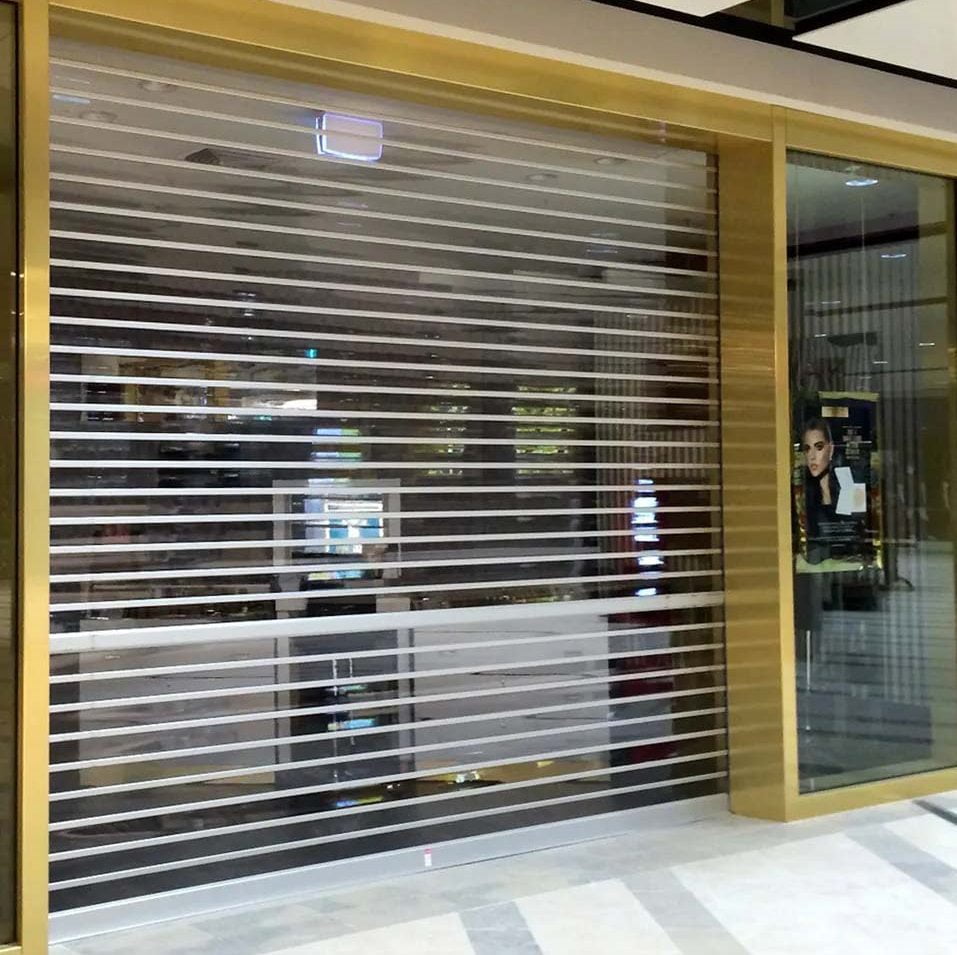

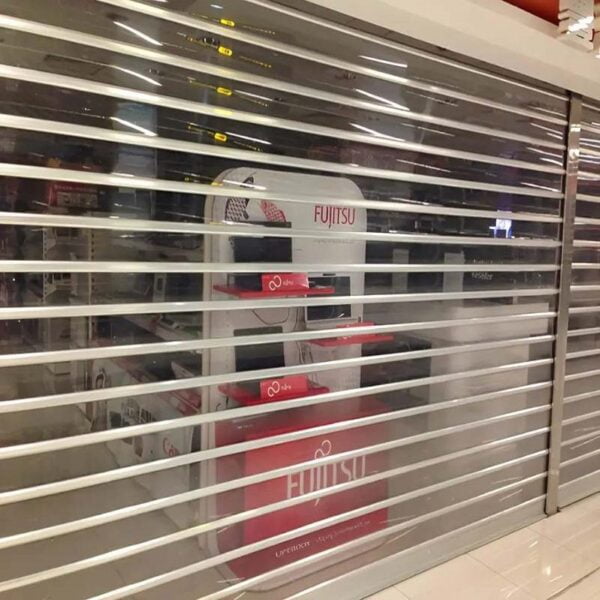

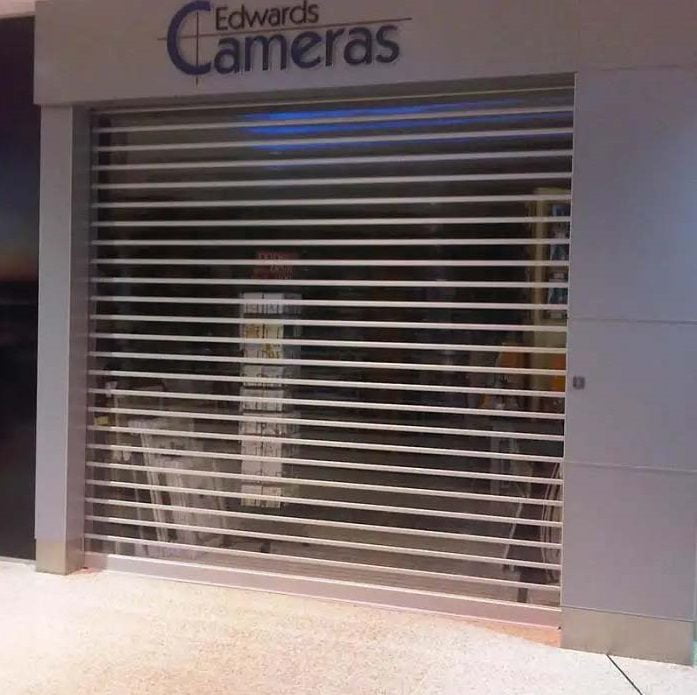

Transparent Garage Roller Doors
Window shutters have been around for centuries. They offer many of the same benefits as they did back then: protection against weather, light control, privacy, and security, among others. But modern-day shutters also provide design flexibility because you can choose a variety of colors or textures to fit any home decor style while still providing all the features mentioned above.
As far as Transparent Garage Roller Doors are concerned, in the past they were used for safety purposes and also to protect oneself from bad weather. However, Interior Security Shutters for Windows have become very popular and are also used for the aesthetic value of a house.
Specification:
| Technical Specification | Description | ||
| Product | Motorised Transparent Garage Roller Doors | ||
| Brand | MR. TECH | ||
| Model No | MR-RSGD110 | ||
| Application | Residential, Industrials, Commercial, etc. | ||
| Optional products | Manual, Semi-Automation, Automatic. | ||
| Door Dimension | |||
| Width Min./Max. | 1000/3000mm | ||
| Height Min./Max. | 1000/5000mm Max. Area 15.0Sqm Large dimensions on request | ||
| Mounting Location | Vertical | ||
| Heat Insulation | Inside | ||
| Mounting Surface | Concrete, Steel | ||
| Opening/Closing Speed | 0.05m-0.1m/sec | ||
| Door Structure | |||
| Slat Material | Polycarbonate (3 mm thick) | ||
| Slat Profile | Flat profile interlocked by SS-linked rods. | ||
| Side Guide Profile | Aluminium profile with Rubber inserts on both ends. | ||
| Bottom Profile | Aluminium profile with Bottom Rubber sealing | ||
| Side Brackets | M.S plate 3mm to 10mm, as per the opening dimension | ||
| Surface Finish | Standard Off White Color Special Color on request | ||
| Details for Automation System | |||
| Control Type | Casing made of compact impact-resistant material, incorporating operating buttons for shutter operation.
Specific IP rating provided as per the requirement. Deadman / Pulse Control suggested application-wise. |
||
| Drive Type | Imported make Indirect/Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc.
Drive with integral braking system with Long life expectancy, CE Certified drives complying with European standard |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Protection Class | IP44/IP54 | ||
| Accessories (Optional) can be integrated with advanced control |
|
Features
- MRM TECHNOLOGY EXIM transparent polycarbonate rolling shutters are constructed from interlocking polycarbonate slats.
- Suitable for internal applications where aesthetics are more focused
- These slats are provided with an SS rod, which gives strength to the shutter.
- Specially designed heavy-duty Extruded Aluminium Bottom profile
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Our shutters have built-in high-performance drives and intelligent, smart controls
- Heavy-duty drives have a weight carrying capacity up to 2000 kg.
- In case of power failure, shutters can be operated manually using a hand crank or chain drive
- Shutter drives are inbuilt with a special anti-drop device and an additional safety catch to ensure that the door does not free-fall in any worst conditions
| Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
- Transparent Garage Roller Doors are made of corrugated sheets known as lath. They are cut, bent, and interlocked into each other. The curtains are the most central part of your roller shutters, and they can be made of galvanized steel, aluminum, or polycarbonate.
- Security Window Shutters for Homes use are commonly used in harsh environments and have very large sizes. It is made from metal, aluminum, and steel. The industrial rolling shutter can be mechanically gear operated push-pull type, etc.
Features of Transparent Garage Roller Doors:
Windows Roller doors and shutters can become an ideal element of a smart home. They can be used to both protect and decorate it. But roller construction has two problems:
- Opening /closing is exhausting if there is no single control center.
- relying only on roller shutters and doors is not wise, you need a security system for complex protection.
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
