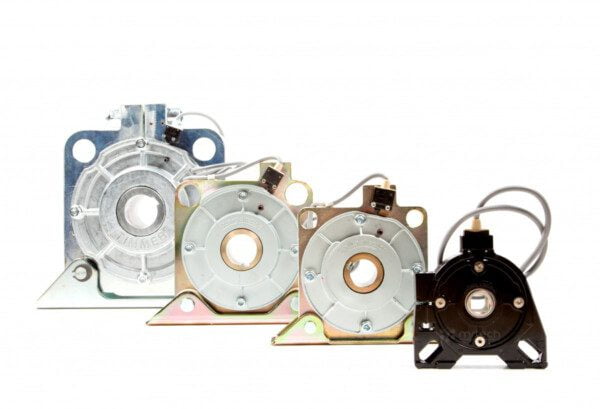

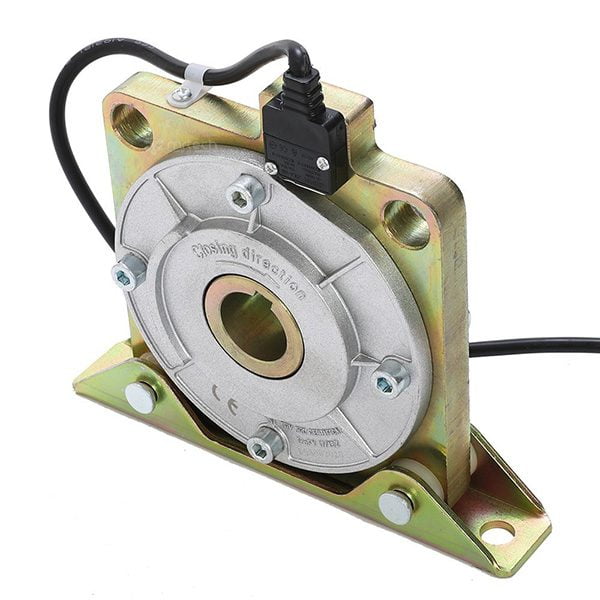

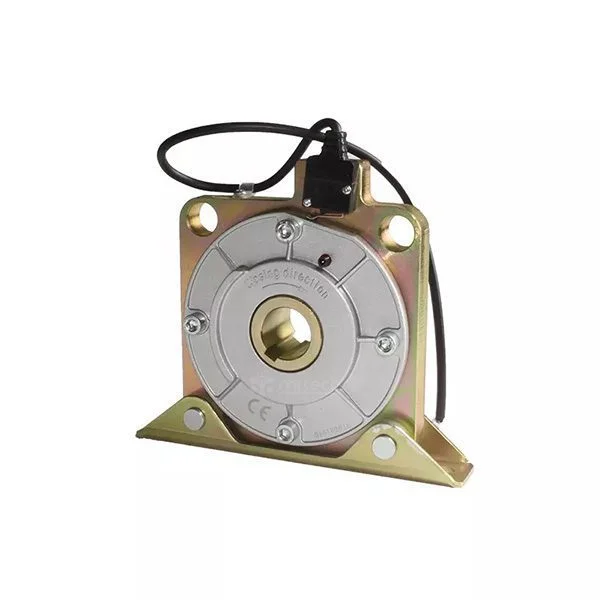

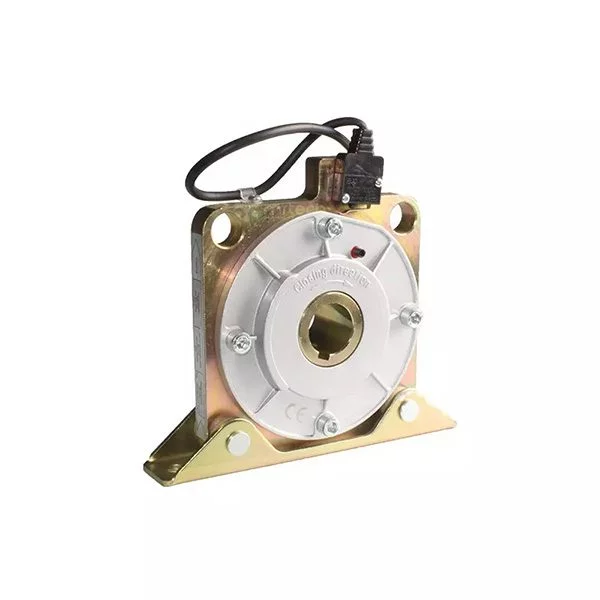

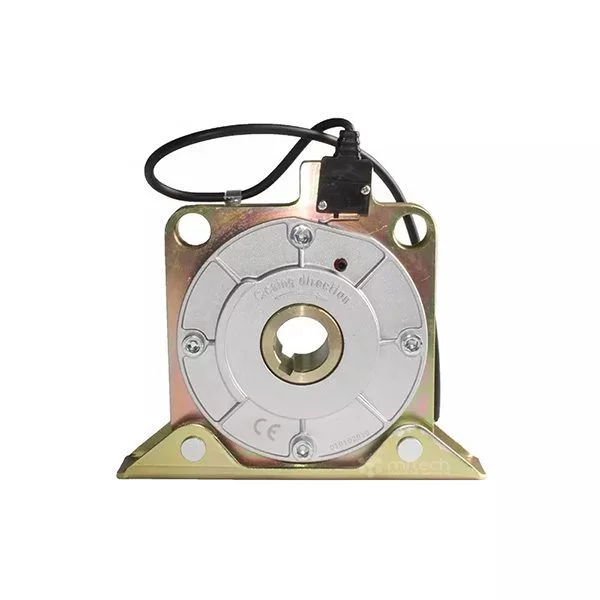

Stopper Safety Device Brake Kit for Industrial Shutter Door
Timmer safety brakes are intended for use with doors, gates, and roller shutters in compliance with the specific conformity test certificate for any one specified application. Stopper Safety Device Brake Kit for Industrial Shutter Door device fixed to the shutter that slows down or stops the motion of the shutters by applying pressure against one side of the door, It is essential to provide health and safety for people and protection for your property
Product Details
- An anti-drop safety brake is intended for use on roller shutter doors and garage doors.
- The brake can be supplied independently or with a suitable shaft and disc assembly to suit octagonal or round barrels.
- Safety brakes arrest the shutter in the event of a critical failure.
- Maintenance-free unit
Parameters:
| Brand | MR. TECH |
| Model No | MR RSB50 |
| Product Name | Stopper Safety Device Brake Kit for Industrial Shutter Door |
| Type | Shutter Accessories |
| Material | Aluminum Alloy |
| Operation | Single-way |
| Max. Speed | 20 (r/min) |
| Run Torque | 1017 N.m |
| Instant Max. Torque | 3509 N.m |
| Bolt Torque | 30 N.m |
| Max. weight of the shutter | 1500kgs |
| Bore square | 50 (mm) |
| MOQ | 8 Set |
| Usage | Rolling Shutter for Side Chain Motors |
| Package Included | Safety brake system, Micro switch, Manuals |
| Applications | Super Markets, Malls, Warehouses, Industries, etc.. |
Stopper Safety Device Brake Kit for Industrial Shutter Door Benefits:
- There are many different types of safety brakes depending on the size and use of the door, each one comes with varying specifications and benefits which can be discussed to make sure you are installing the correct systems
- The safety arrester brake reacts immediately to absorb the sudden accelerated speed by stopping the roller shutter from descending further.
- This centrifugal brake arrests the descent of the shutter if there is a failure in the motor. If the motor’s operational brake fails to hold the shutter stationary when it is in its upper position, or the shutter descends at an uncontrolled speed, the safety brake will activate and bring the shutter to a complete halt.
