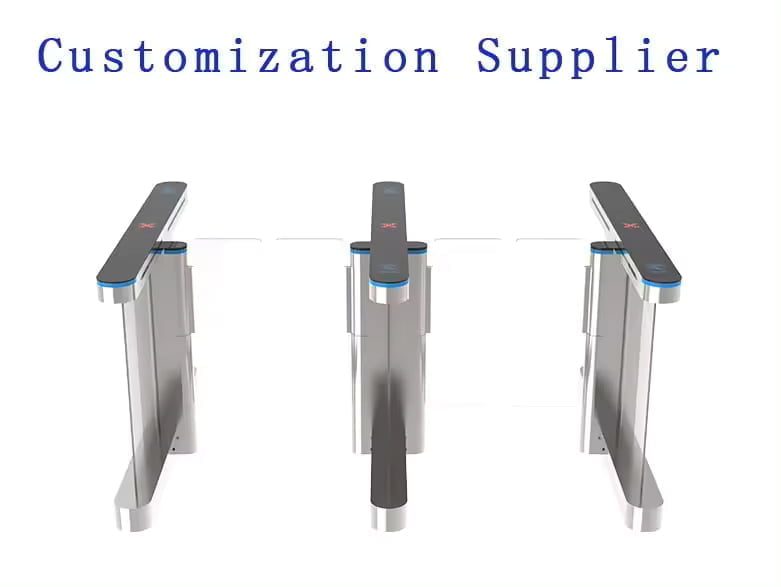

RFID Access Control Machine Speed Turnstile Gate
The MRM TECHNOLOGY is an aesthetically pleasing motorized turnstile that combines sleek design with advanced security features. It features a unique sliding flap operation principles crafted with premium housing materials and lightweight cabinet shapes, making it a universal solution for a wide range of facilities that demand equipment of elegant standards. Besides smoothly integrating into upscale surroundings, MRM TECHNOLOGY also maintains precise access control. As a freeway series product, it has an anti-tailgating program that ensures no unauthorized entries occur in highly secured places.
Speed Turnstile Gate Basic Function
- The entry and exit direction can be set independently, free mode/forbidden model
- Automatic reset function: The speed gate will open the arm after receiving the valid opening signal when standby. The speed gate will return to the hindered zero position automatically under the following situation:
- –within the allowed time, pedestrians have ben detected to pass through the passageway in specified direction;
- –over the allowed time, there is no people passing through the passageway.
- self-recovery function: The speed gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gat automatically return to the hindered zero position.
- Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction
- Compatibility: Equipped with dry contact signal input interface can make sure compatible with all kinds of access controllers
Product Technical Parameters
| Model Number | MR SPT240S |
| size | 1400*160*100mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage.
2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates Speed Turnstile Gate price have a unified secondary development interface, a docking, can be connected to a variety of equipment;
2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
