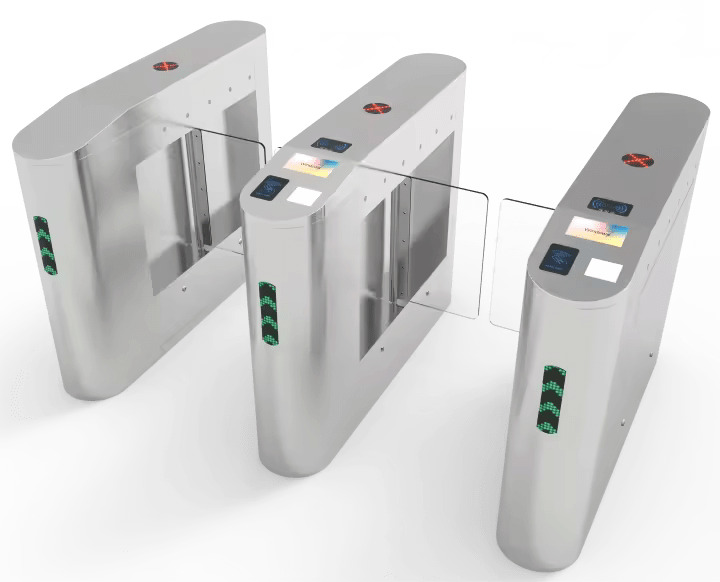

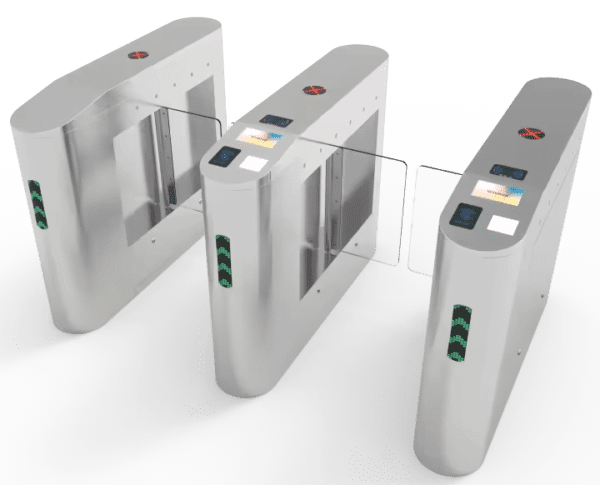

Entrance SS 304 Speed Gate Swing Barrier Turnstile Gate
Each model of these security Speed Gate Swing Barrier features a unique design that can be customized to match the interior of any building. Whether you’re looking for a sleek, modern look or a more traditional aesthetic, the signature speed lane series has something to offer.
1. Compact design, Efficient and secure access control system with reasonable price.
2. Auto reset function, If no passing during identified card-reading time, the system will reset automatically, passengers are prohibited to pass until card is swiped.
3. Both RFID card reader and QR code scanner could be integrated for better user experience.
4. with direction indicator, it can guide passenger the correct entry and exit direction.
5. Automatically locking to prevent passenger passing without the identified device.
6. It adopts DC Brushes motor to drive stably and has low failure rate.
7. Bi-directional passing or single way passing.
8. Infrared photocells for safety access.
9. Both acrylic and glass material door panel are available of arm material
Product features:
With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.
The running status of the device can be programmed through the built-in small button on the main control board;
Mechanical structure, induction dual anti-pinch function, when the telescopic arm encounters resistance during the reset process. it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until the reset, and the force is very small(<2kg);
sound and light alarm function: including illegal intrusion and trailing alarm;
Anti-shock function, the telescopic arm will be automatically locked when it does not receive the opening signal;
The telescopic arm synchronization function;
with automatic SS 304 Speed Gate Swing Barrier reset function. the system will automatically cancel the user’s permission for this pass after the gate is opened and the system does not pass within the specified time. The standard is automatic reset 5 seconds after opening;
The channel is automatically opened after power off. and automatically closed after power on?
It can be connected to a variety of card readers, and can receive relay switch signals to work;
one-way or two-way control of personnel entry and exit:
It can realize remote control and management directly through the management directly through the management computer;
Extensible function: counting function: lengthened case. material selection of telescopic arm.
Product Technical Parameters
| Model Number | MR B355 |
| Product name | Entrance SS 304 Speed Gate Swing Barrier Turnstile Gate |
| Application | Security Access Control Management |
| size | 1400*200*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 70KG / double core movement: 80KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. Speed Gate Swing Barrier support normally open, normally closed, power failure door opening, fire linkage.
2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;
2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this Speed Gate?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier gate?
Yes, the Entrance SS 304 Speed Gate swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
