MS Sliding Main Gate Design 021

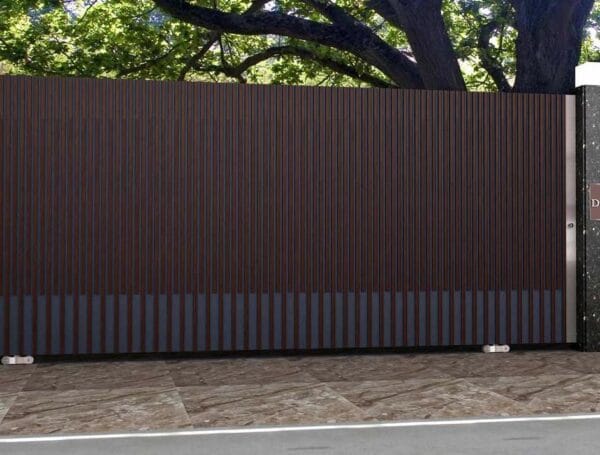

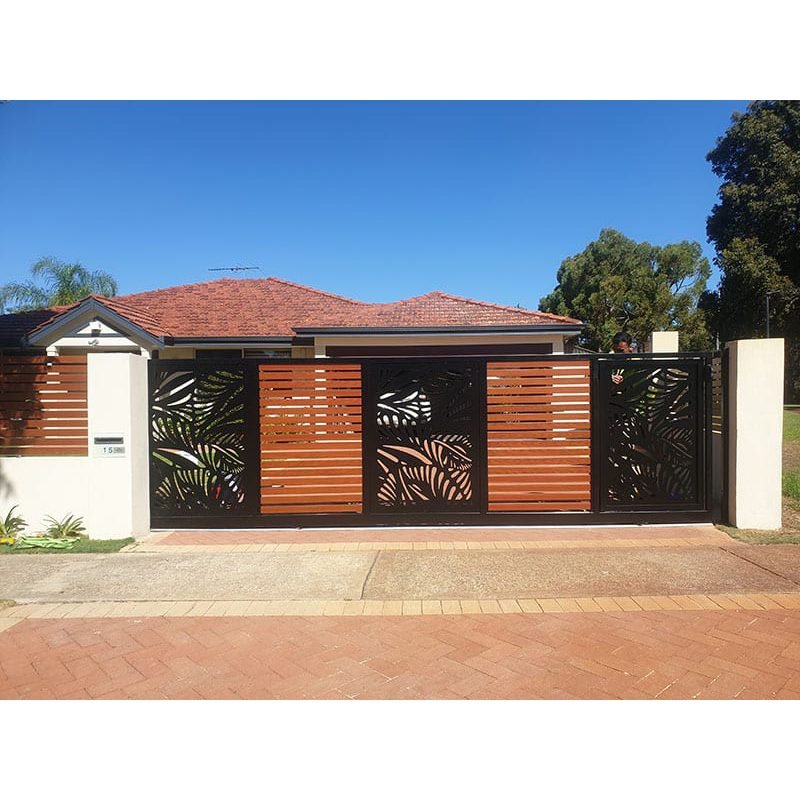

MS Sliding Main Gate Design

MS Sliding Main Gate design are very reliable and have long trouble-free lifespans. MS gates with HPL sheet Occupy less Space as compared to swing gates. It maximizes space on the drive because the gate opens sideways rather than inwards. Preference for industrial, Commercial, and residential applications.

How Does an MS Sliding Gates work?

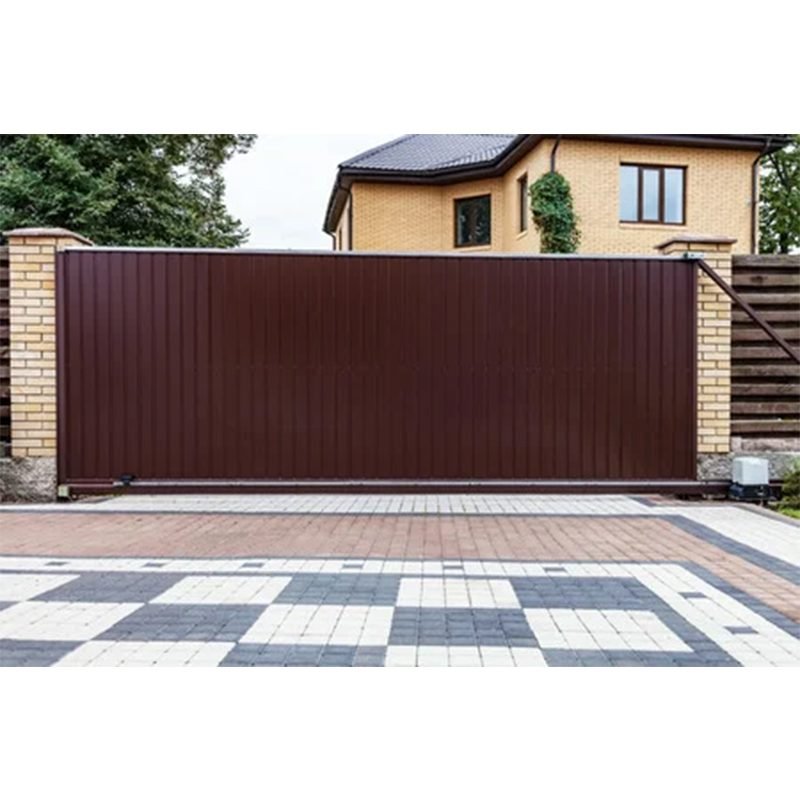

Tracked MS Sliding Main Gate Design run Along the Fixed track, upon which the majority of the gate’s weight is carried on wheels. The track is installed along the opening, running at the base of the gate, and the gate itself typically features automated operation

Sliding Gate Application

They are more secure and provide wide openings the ideal choice for industrial, commercial, and residential applications.

Featured Product:

Customized Automated MS Gate designed and Fabrication in our Company. Electromechanically driven remote-controlled steel gates are hard and apt to be installed at any industrial, residential or commercial premises. The automatic gates safeguard long-term steadiness and exceptionally blends in with the style of buildings. Varied choice of models for gates weighing from 300Kg to 18000kg

Hpl Sheet Colors Gate Design

HPL men High-Pressure Laminate Applications Solid color, Woodgrain, Marble(stone), Fancy, etc

Advantages of Automatic MS Sliding Gate

• Planned and fabricated with superior square or rectangular hollow sections, along with MS sheets and flats collected by high-quality welding.
• MS Sliding Main Gate design have Manual operation in case of power failure.
• Highly condensed dimensions & very silent operation. Built-in anti jerk device stops damage to the automatic system
• Problem detection causes the gate movement to stop if a hindrance or person is detected
• The advance electronic control unit licenses operation time adjustment, partial opening, reflex closing, step-by-step control, stop safety, reverse safety etc.


  How to Concrete in the floor track?

  Cut out and remove about a 150mm wide strip. Level the area with stone and compress. Lay the floor track in the trench and use the joining pins to join the lengths together. Level with a straight long edge and spirit level while aiming to keep the bubble of the level within the lines. On a loose substrate hammer small pins to either side of the track every 450mm. When it becomes tight weld it to the rack and cut off the excess. Lastly using Concrete, Backfill the top 13 ∼ 15 mm of the 20mm bar that’s Showing.

  Troubleshooting Sliding Gates:

  Troubleshooting the Sliding MS Gate if lock hangs up and does not latch properly try the following steps before contacting technical support

  • Reset closed position limit so gate is snug against stop plate
  • Lubricate latch with silicone spray to help latch to operate freely
