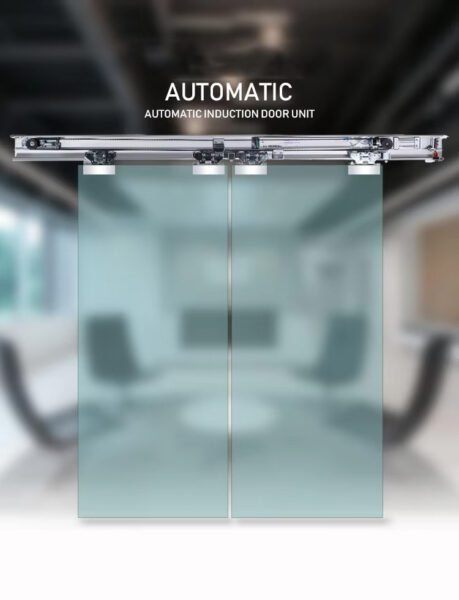

Automatic Sensor Sliding Door Opener Glass / Wooden Door Operator
Glass Sliding Door Operator With Sensor 65w Brushless Motor LED Digital Controller
About this product
- High Performance and Efficiency: This automatic sliding door machine is designed for high-traffic supermarkets, offering fast and reliable operation with adjustable opening and closing speeds of 200-460mm/s. It can efficiently handle heavy loads of up to 2x150kg, ensuring seamless customer flow.
- Durable and Low Maintenance: With a power consumption of less than 100W, this machine is energy-efficient and environmentally friendly. Its robust design and 2-year warranty provide peace of mind, while free spare parts and online technical support ensure minimal downtime.
- Flexible and Customizable: This sliding door opener is suitable for both single and double doors, with a clean opening width of 1000-2800mm / 1800-3800mm. The adjustable open time of 1-9 seconds allows for optimal door performance in various settings.
- Wide Operating Range: The machine operates within a humidity range of -20 ~ +50, making it suitable for various supermarket environments. Its AC 220V power supply and 50/60Hz frequency ensure compatibility with most electrical systems.
- User-Friendly and Easy to Install: Designed with a modern style, this automatic sliding door machine is easy to install and operate, providing a hassle-free experience for users.
Technical Specifications Data
| product name | Heavy Duty Sliding Door Opener Electric Dual Door Motor Machine |
| Design Style | Modern |
| Model Number | MR150AL |

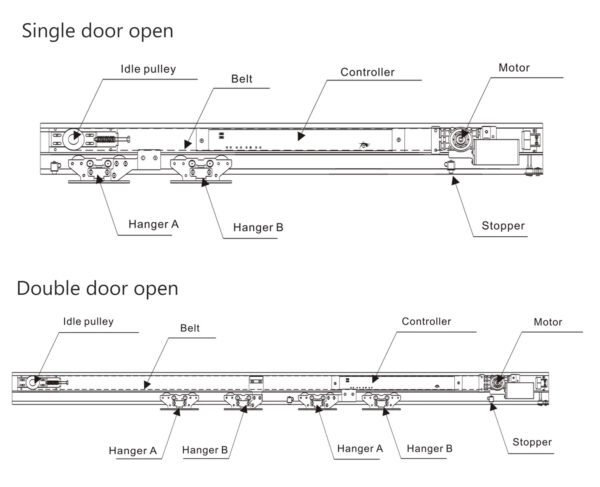

| Door form | Single-door leaf / double-door leaf |
| Carrying weight | ≤1×150kg,≤2×125kg |
| Door width | 750-1600mm,650-1250mm |
| Power supply voltage | AC220V±10%, 50-60hz |
| Standard Size: | 4200mm |
| Rated Machine consumption power | <70W |
| Door opening travel speed | Door opening speed: 200-450mm/S(adjustable) Closing speed: 200-450mm/S(adjustable) |
| Hold Opening hours | 0-8S(adjustable) |
| Temperature range | -20 ~ +50°C |
| Manual opening and closing force | <40N,<50N |
| Humidity range | <relative humidity 85% |
| After-sale Service | Online technical support |
| Motor | DC brushless |
| Controller | Microcomputer control |
| Guide rail length(Optional) | 2100mm,4200mm,4800mm,5000mm,6000mm |
| Material | Aluminum alloy |
| Sliding noise | ≤55dB |
| Warranty | 2 years |
| Keyword | Automatic Sliding Glass Door Operator at a low price |
| Application |
Hotel, Office Building, Supermarket |
Features and Specifications

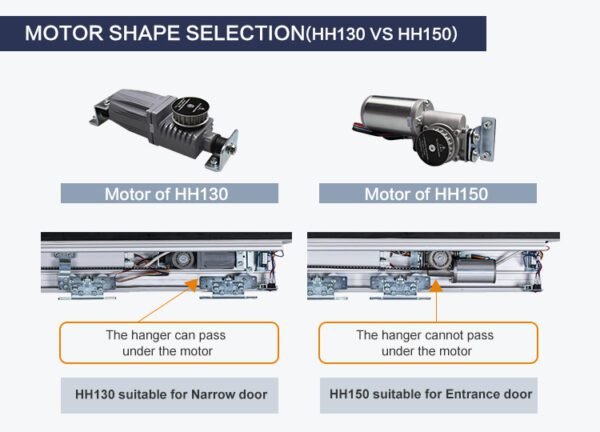

- Motor: 75W brushless DC motor, 24V, 3200 rpm, capable of handling doors up to 150kg.
- Control System: Microprocessor control with self-learning function, allowing for automatic closure upon power-on and adaptation to door parameters.
- Digital Display: An LED digital screen facilitates easy and accurate adjustment of working parameters, including opening/closing speed, hold-open time, and buffer distance.
- Safety Features: Anti-clamping function during opening and closing, with dedicated terminals for anti-clamp side sensors for enhanced safety.
- Functionality: Adjustable parameters for opening and closing speeds, buffer distance and intensity, hold-open time, and starting force.

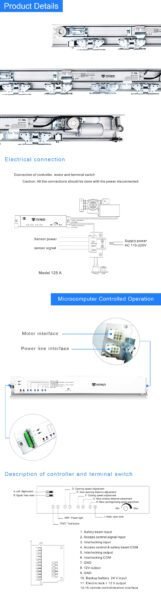

- Connectivity: Expansion terminals allow for integration with electronic locks, access keypads, function keypads, and remote controls.
- Sensors: Compatible with various sensors like microwave, hand wave, and PIR sensors for activation and safety. Infrared motion sensors are commonly used to detect movement, sending signals to the door control system to open or hold the door open.
- Wireless Control: Features rolling code frequency and power-off memory for remote control operation.
Product Advantage
- Adopting European motor and gearbox integration technology, the drive is strong, the operation is stable, the output power is improved, and it can adapt to the needs of larger doors.
- Suitable for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, hospitals, and other places.
- The microcomputer control system drives the motor and controls the door to operate in the set mode. Wide voltage power supply design, with many interfaces such as a double door interlock.
- Special lubrication measures, special deceleration mute wheel, professionally designed hanging parts, and roller structure greatly reduce the running noise.
- Every time there is a self-test procedure, the door will rebound when it encounters resistance, which fully guarantees the safety of the passersby.
