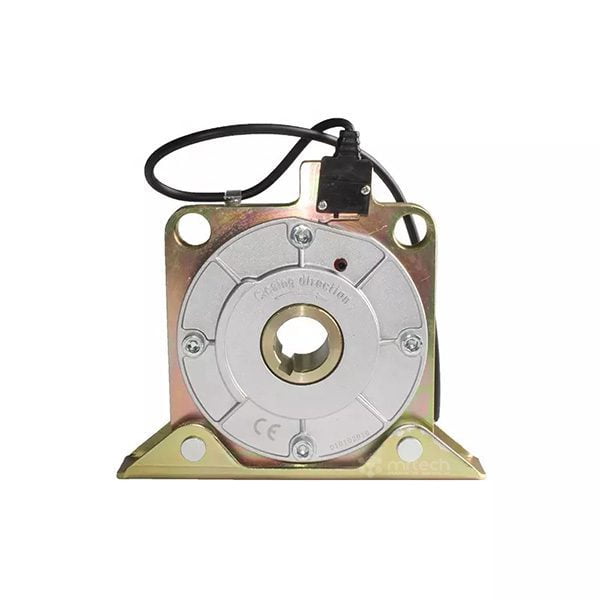

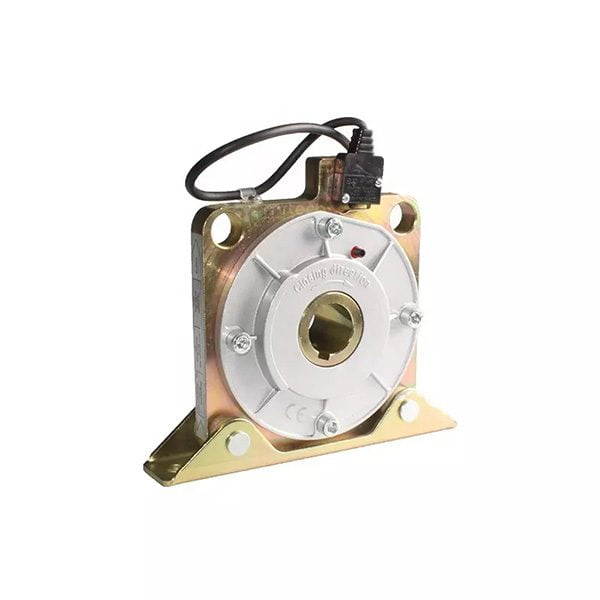

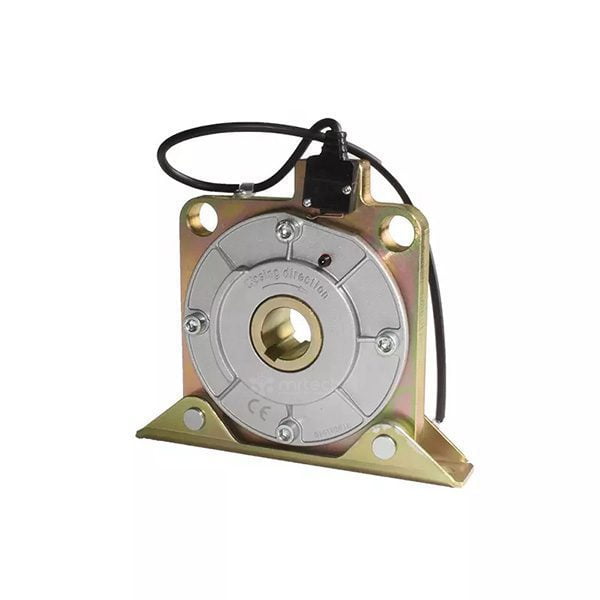

Anti Falling Safety Brake for Garage Overhead Door and Dock
Safety brakes on your shutters are an important investment for the security of your business premises. We are going to look at why your roller shutters need to have safety brakes for your safety and others. Shutters are used in a wide range of environments from office buildings, warehouses, industrials, educational, and retail buildings.
Parameters:
| Brand | MRTECH |
| Model No | MR RSB40 |
| Product Name | Anti Falling Safety Brake for Garage Overhead Door and Dock |
| Type | Shutter Accessories |
| Material | Stainless Steel |
| Operation | Single-way |
| Max. Speed | 22 (r/min) |
| Run Torque | 547 N.m |
| Instant Max. Torque | 2058 N.m |
| Bolt Torque | 30 N.m |
| Max. weight of the shutter | 1000kgs |
| Bore square | 30 (mm) |
| MOQ | 5 Set |
| Usage | Rolling Shutter for Side Chain Motors |
| Package Included | Safety brake system, Micro switch, Manuals |
| Applications | Garage Door, Malls, Fashion Stores, Sports Stores, etc.. |
Anti Falling Safety Brake for Garage Overhead Door and Dock Features:
- It’s a device fixed to the shutter that slows down or stops the motion of the shutters by applying pressure against one side of the door, It is essential to provide health and safety for people and protection for your property
- This centrifugal brake arrests the descent of the shutter if there is a failure in the motor. If the motor’s operational brake fails to hold the shutter stationary when it is in its upper position, or the shutter descends at an uncontrolled speed, the safety brake will activate and bring the shutter to a complete halt.
- There are many different types of safety brakes depending on the size and use of the door, each one comes with varying specifications and benefits which can be discussed to make sure you are installing the correct systems
