Automatic Motorized Swing Roof Skylights
Automatic Motorized Swing Roof Skylights

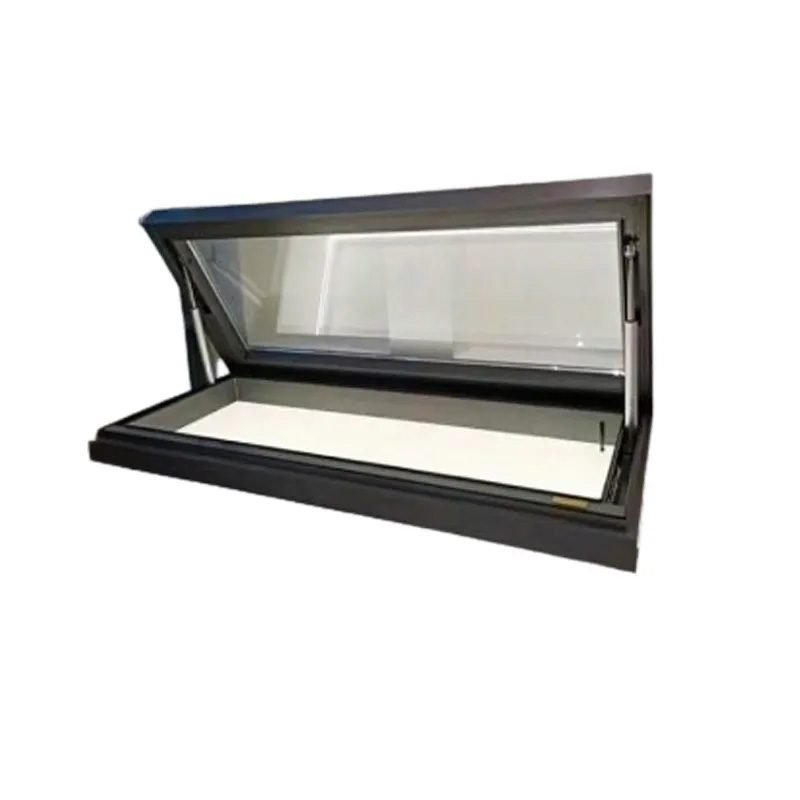

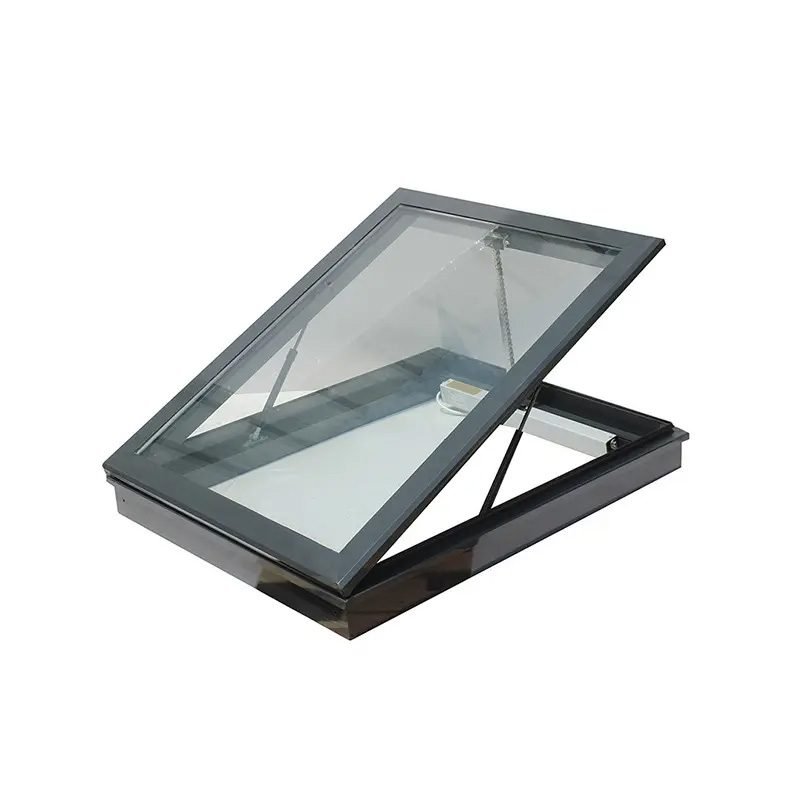

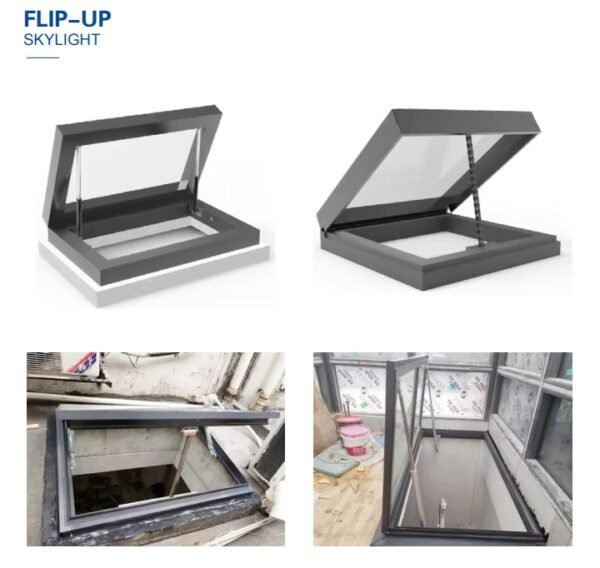

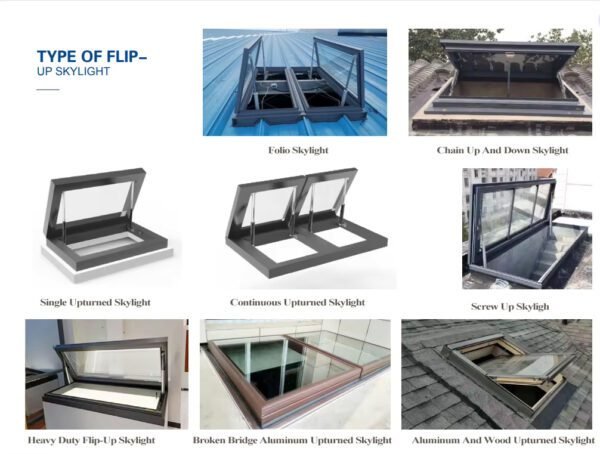

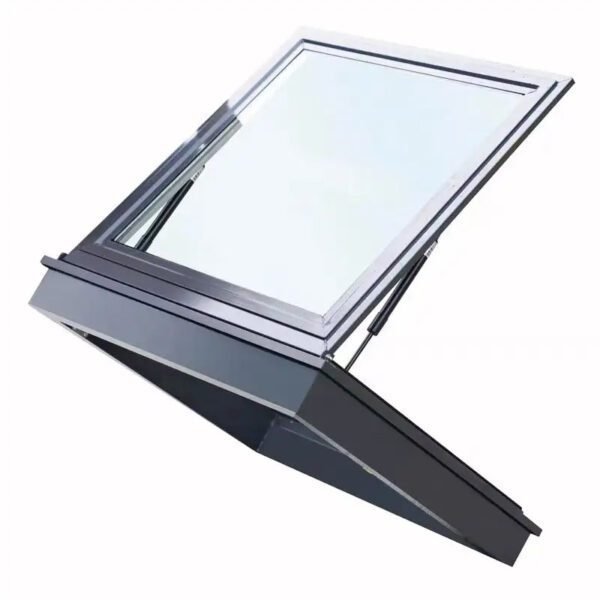

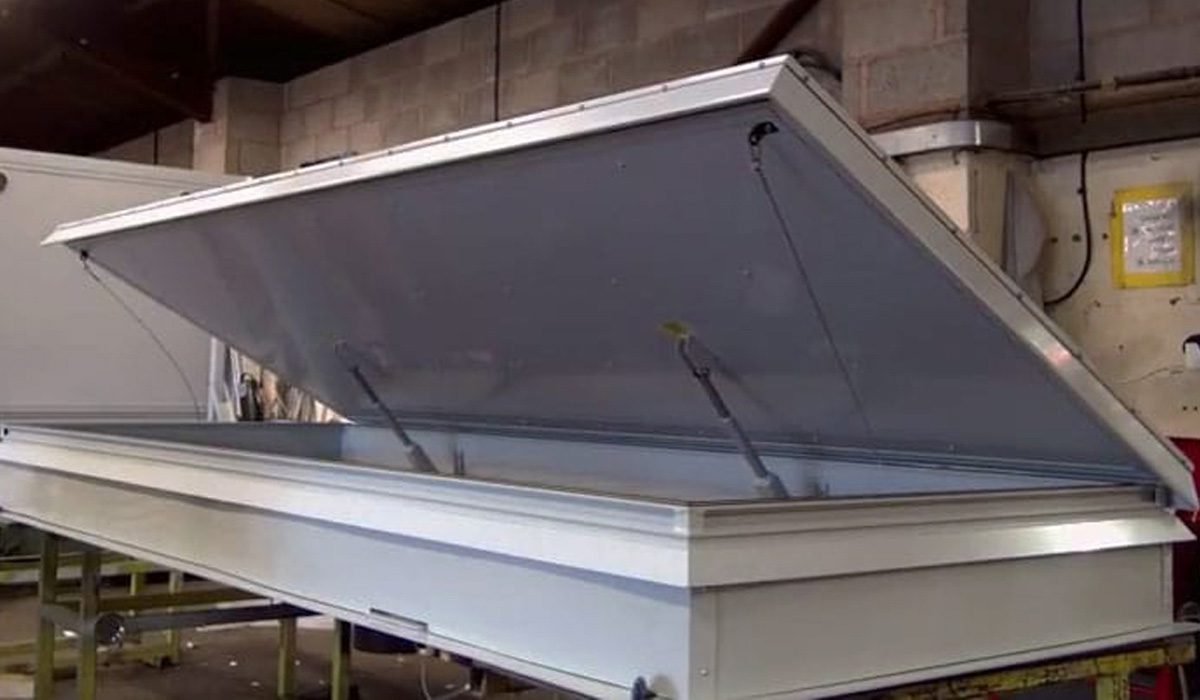

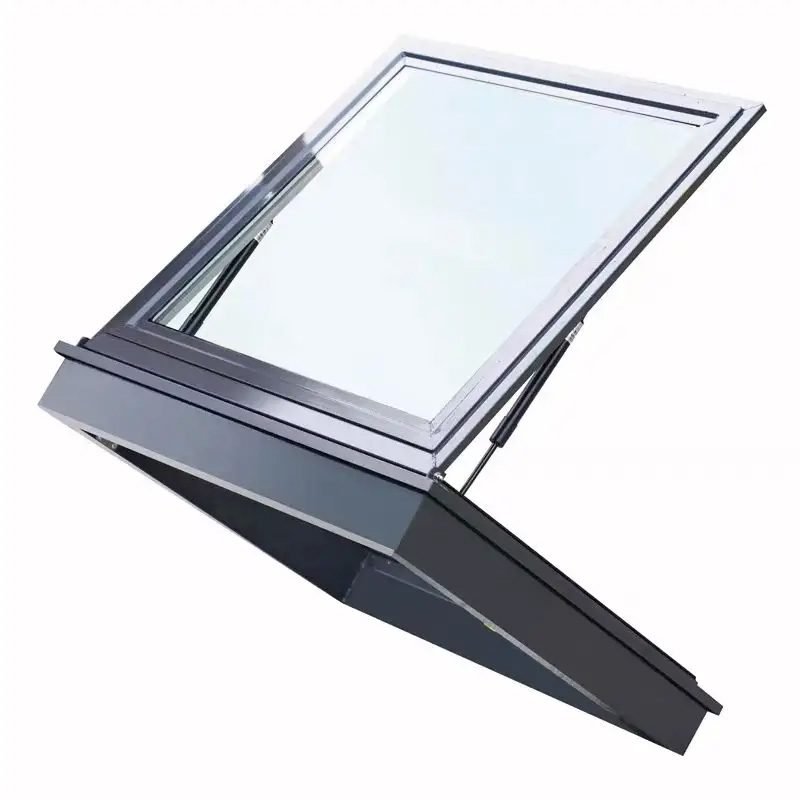

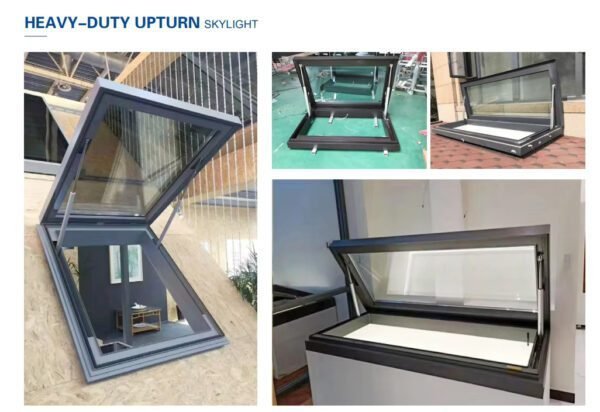

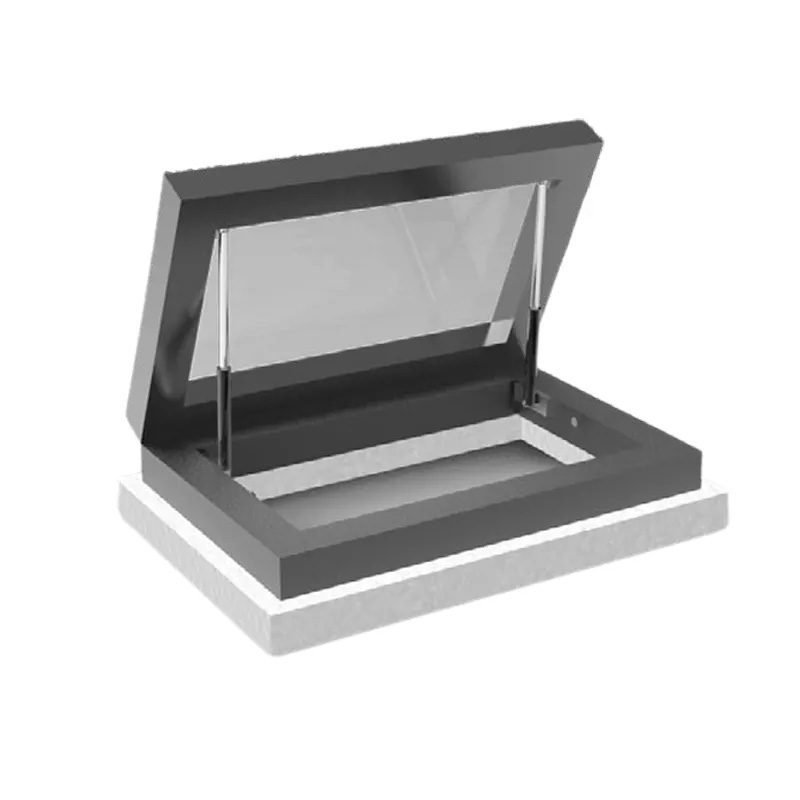

Skylight with Compass and Complete Top Swing Opening
Swing skylight offered by MR. TECH, with a compass opening and complete top swing feature, is a combination of design and high performance, suitable for those looking for maximum functionality. MR. TECH Automation can provide the solution to create bright, sunny interiors even if you have a flat ceiling under a sloping roof. The simple construction of a shaft is all that’s needed to capture light and bring fresh air into the home.
A skylight shaft is a light well from which the incoming light from the skylight is distributed into the room. If the shaft is ‘flared’ it is possible to make both the skylight and the shaft appear larger, and it ensures the light is more evenly distributed once it enters the room. Just imagine how opening the ceiling to the sky will visually expand a room with sunlight from above, cool breezes, and the spacious open feeling of being in touch with the outdoors.

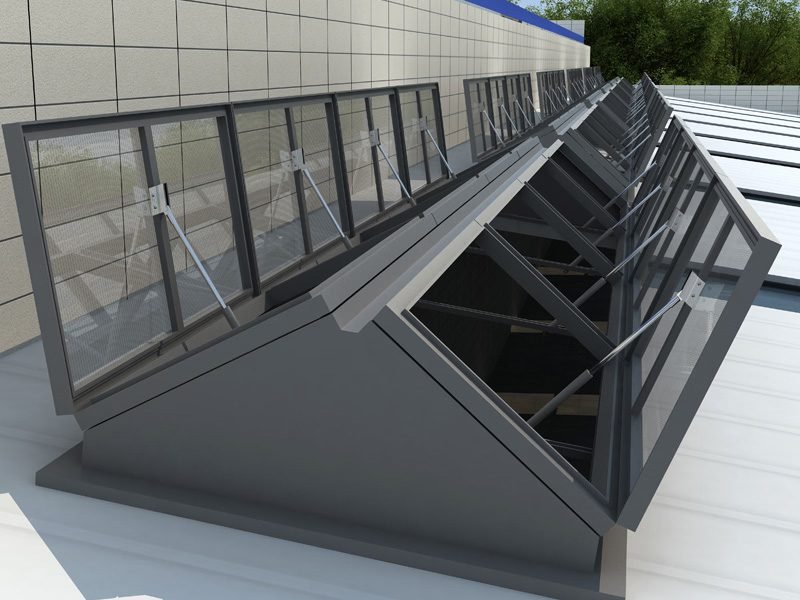

Swing Operable Skylights
This type of skylight has different applications and specific functions, one being ventilation. A typical ridge vent or standard operable skylight only opens a few degrees, allowing small amounts of ventilation. The vertical unit fully opens, allowing optimum amounts of ventilation into a space. Daylight is a desired effect of all skylights, and the swing series allows ample levels of daylight.
Swing Skylights Easy Access

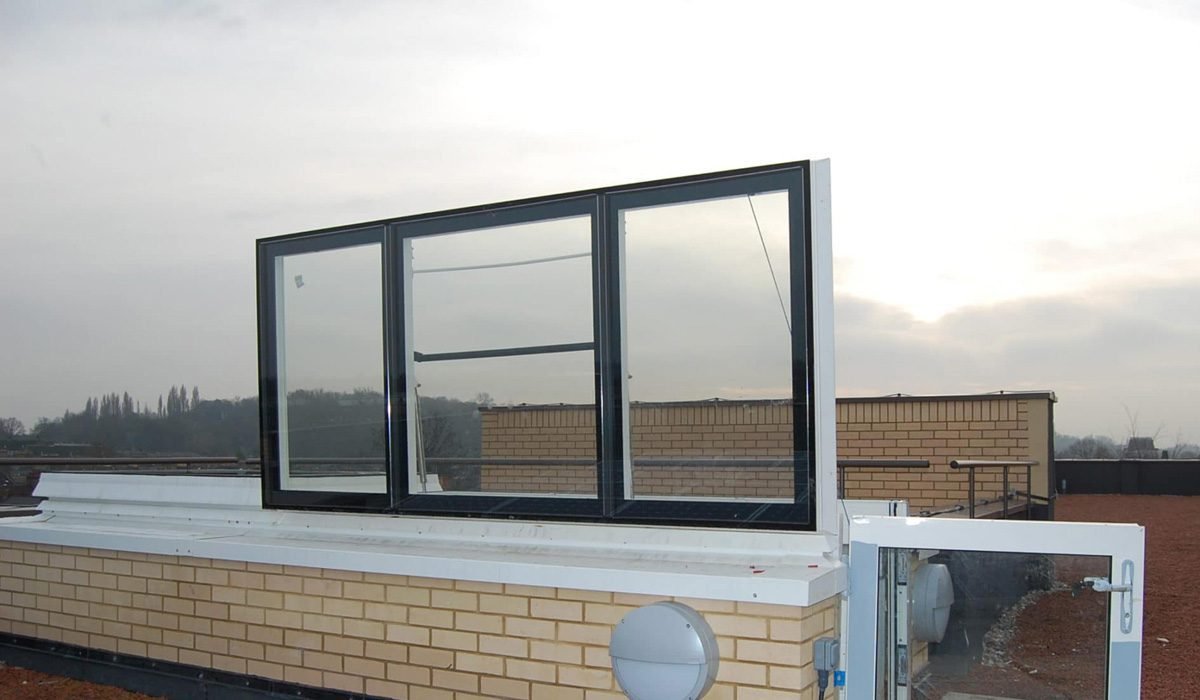

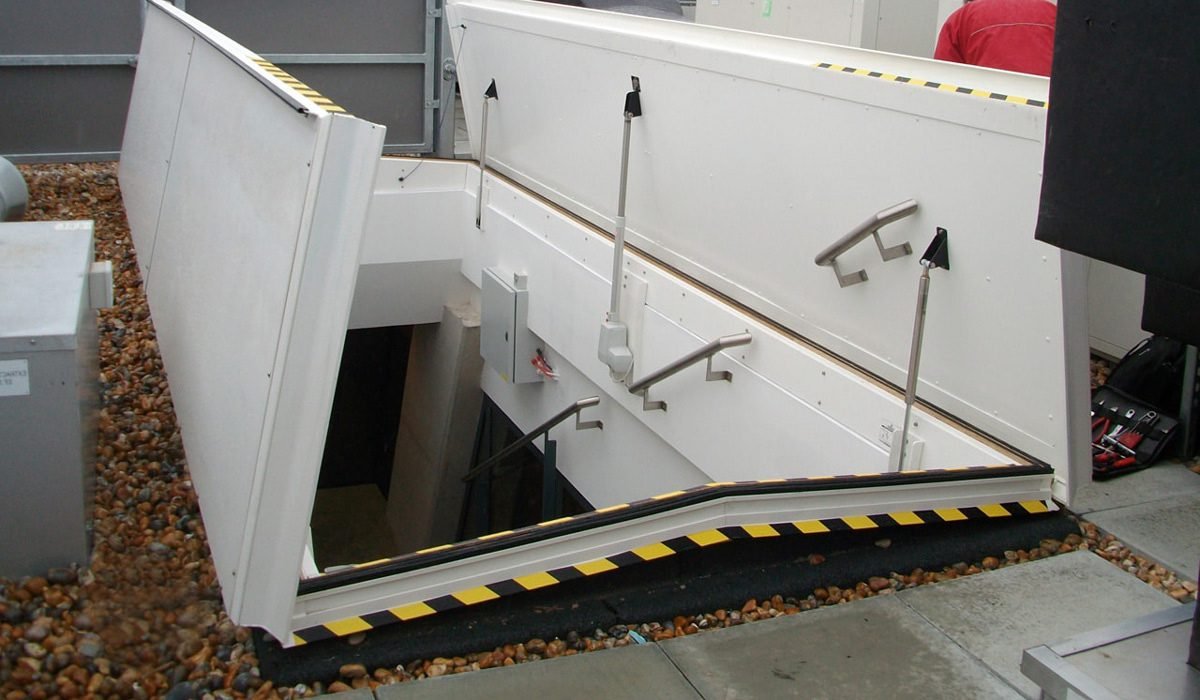

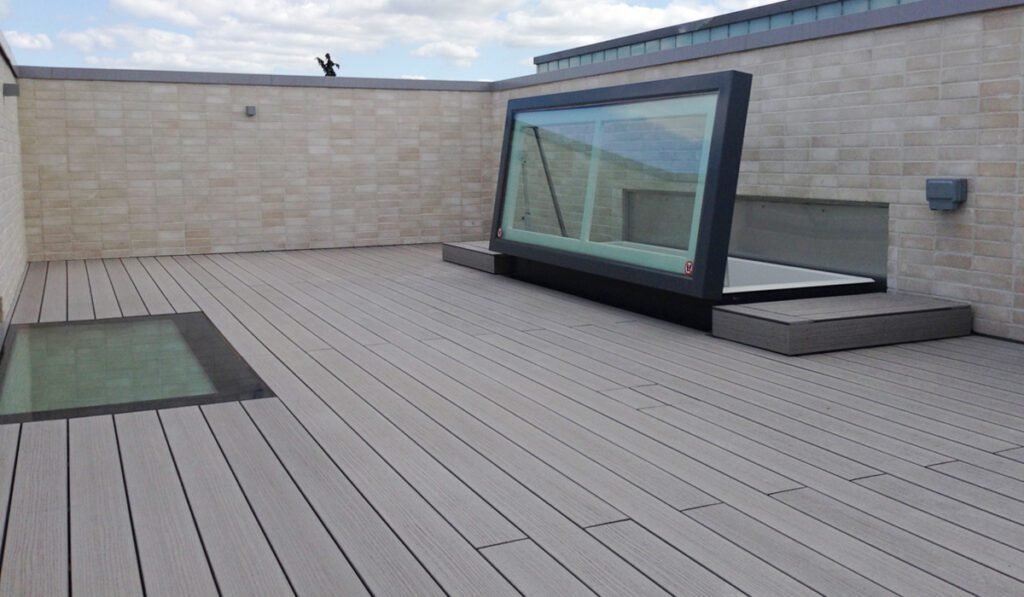

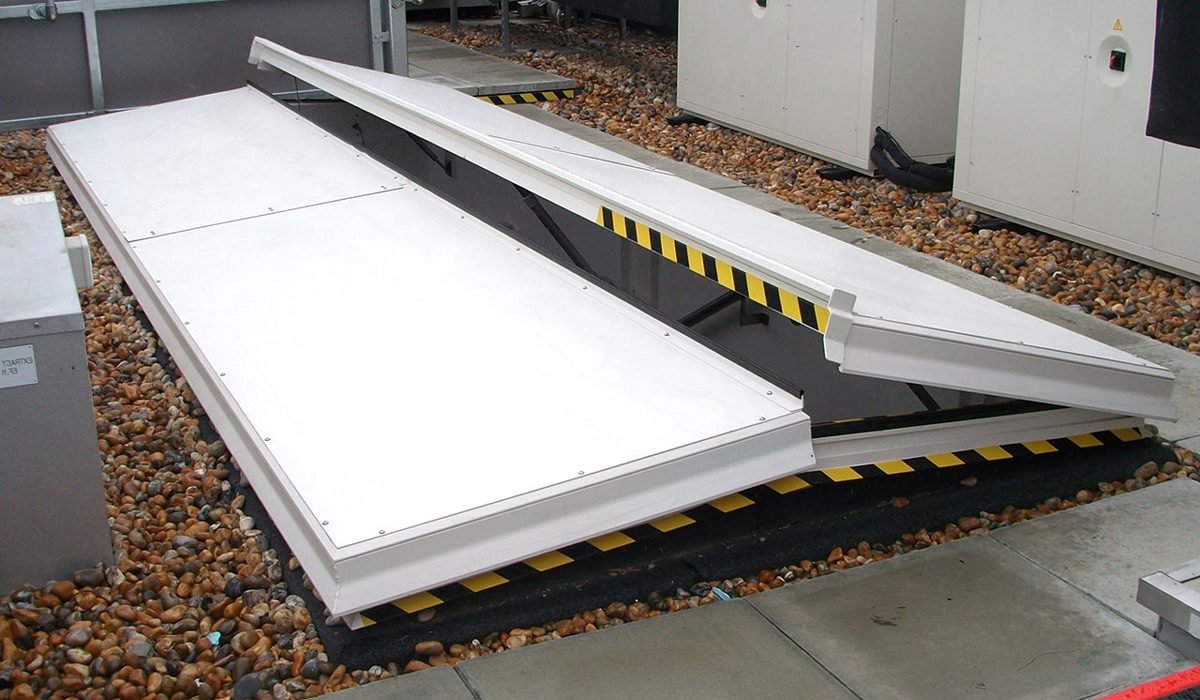

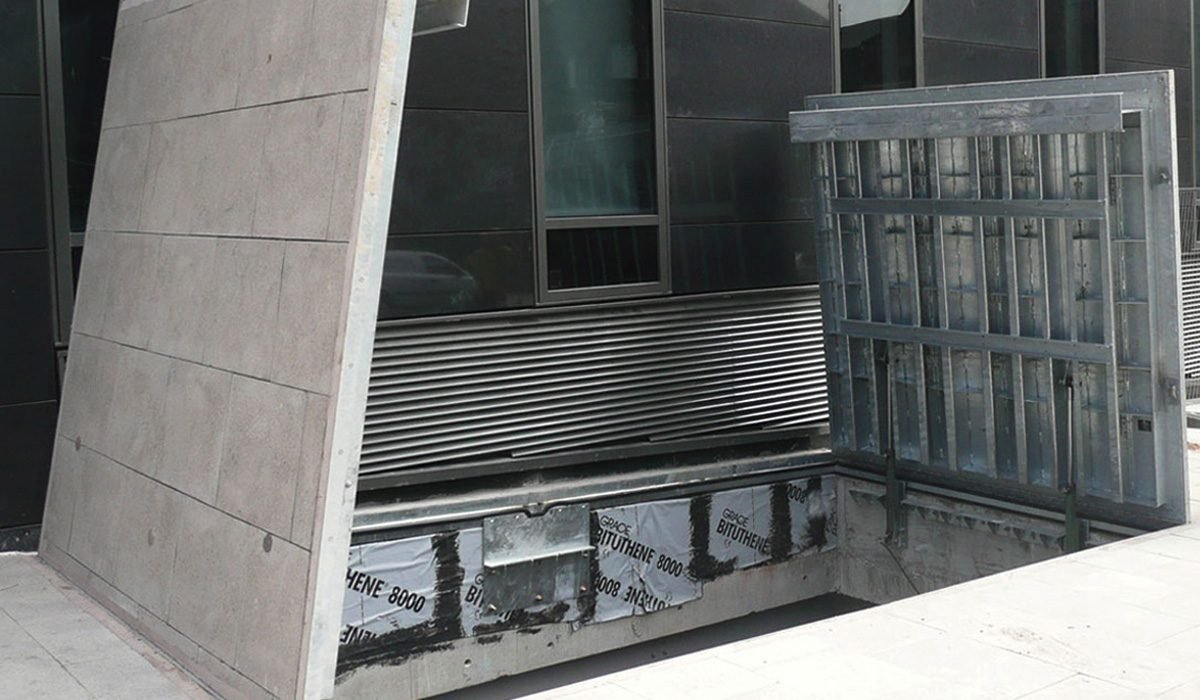

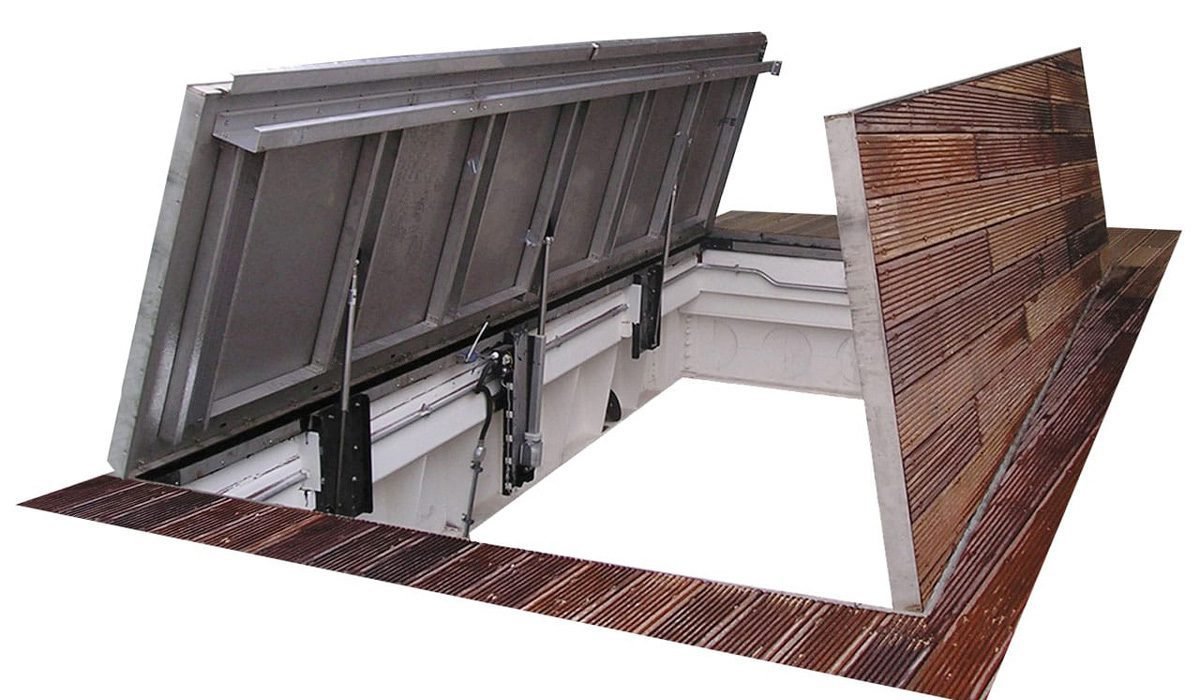

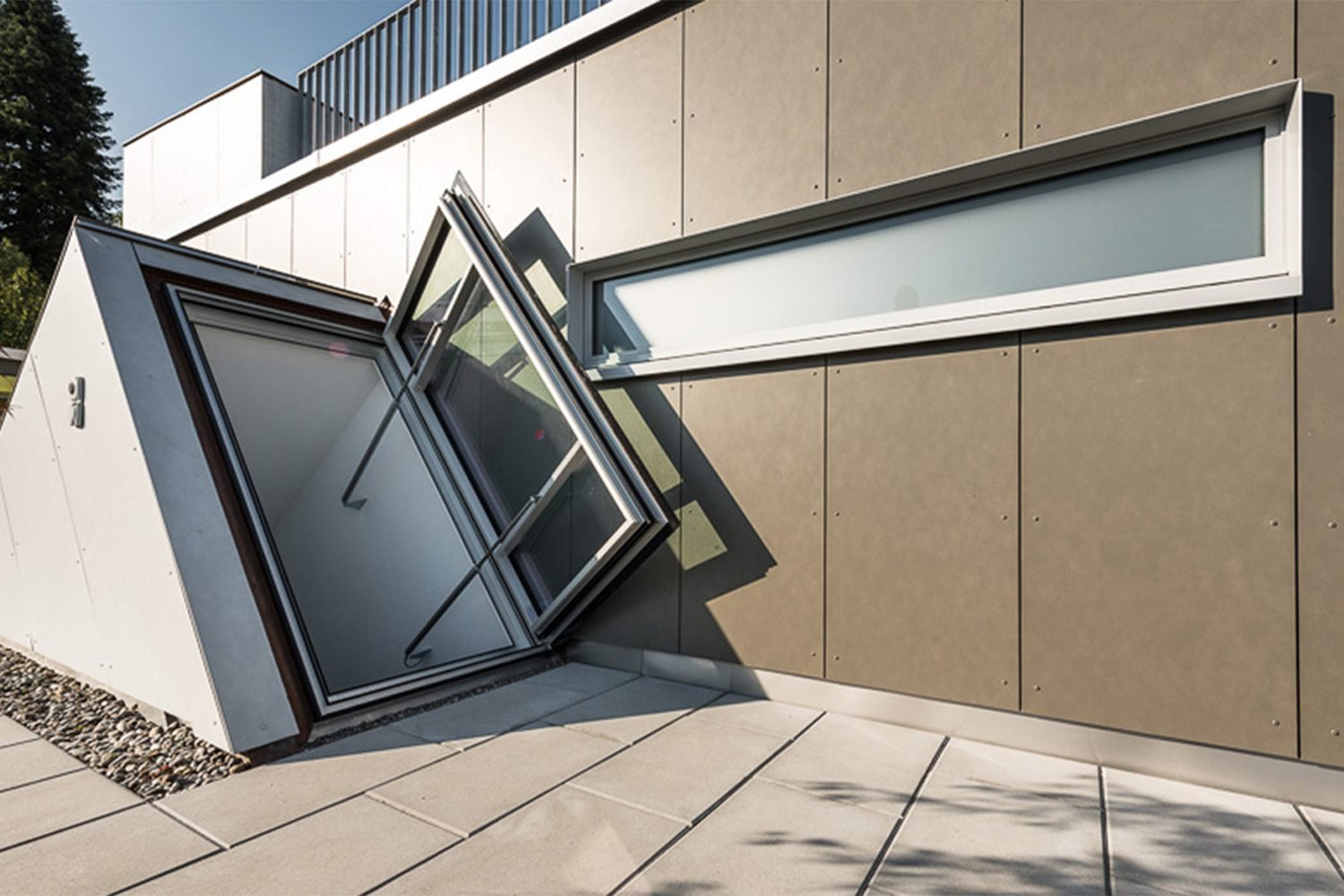

At times, large equipment may need to be moved into a room, but the building doors may not be large enough. Swing skylights provide an unobstructed opening, allowing equipment to pass into the interior of the building. C4G Automation swing operable skylight can also be used for roof access. Depending on the building’s design, reaching the roof may be challenging, a swing skylight creates an easy exit to any building’s roof. This type of skylight also provides unobstructed views of the night sky for those who enjoy stargazing.
Motorised Skylights Customization
All Swing operable skylights built by MR. TECHAutomation is constructed out of a low-maintenance aluminum framework that will not rot, rust, warp, or require yearly finish work. Aluminum & Stainless steel an ideal materials to withstand years of exposure to the elements. Virtually any type of glazing can be incorporated into the framing system, including laminated glass. The vertical degree skylight is custom-built. This means the skylight is built to your specific sizes. The design of the skylight is also built to your desired slope and number of units.
MAIN FEATURE
- Rain Protection
- Ventilation
- Control light and shade
- Control solar heat
- Can withstand strong wind loads
- Increased privacy – no uninvited visitors
- Wide range of electromechanical operators for skylights up to 4500kg in weight
- Control to stop anytime while the gate is moving
- Works on a Precise machine-cut toothed pinion along with a galvanized rack & chain with wire rope arrangement
- These automatic sky lights are widely used and an Economical option among all the types of skylights

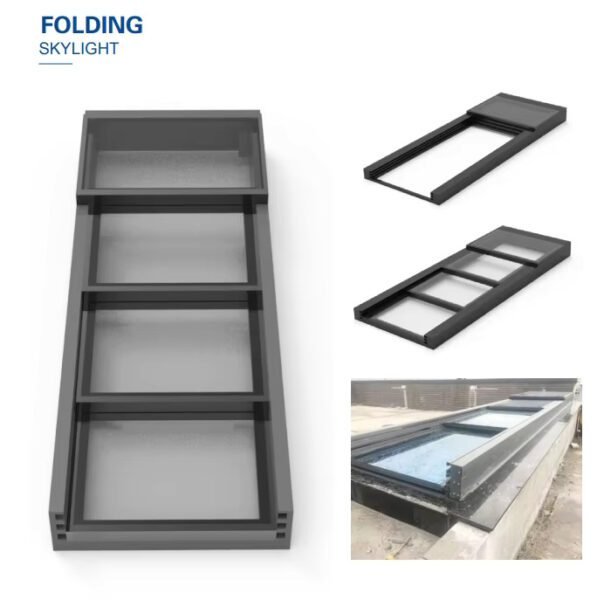

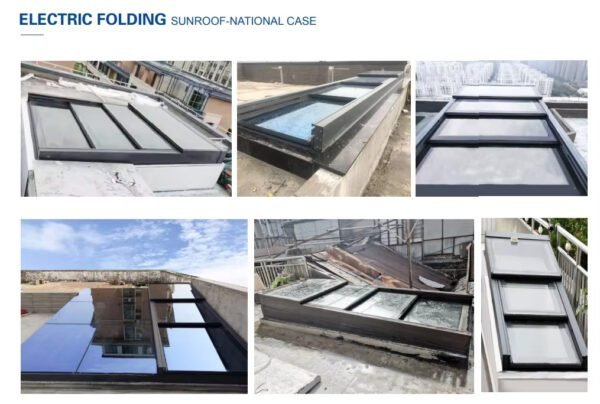

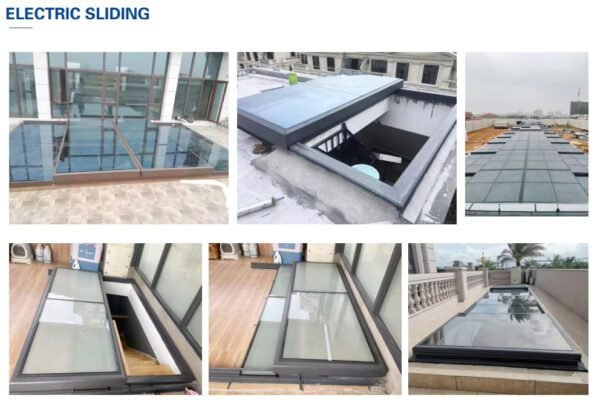

- Sliding motorised roof system consisting of 3 or 4 glazing panels; the roof can be opened to two-thirds or three-quarters of its total width as the topmost panel is fixed and cannot be moved

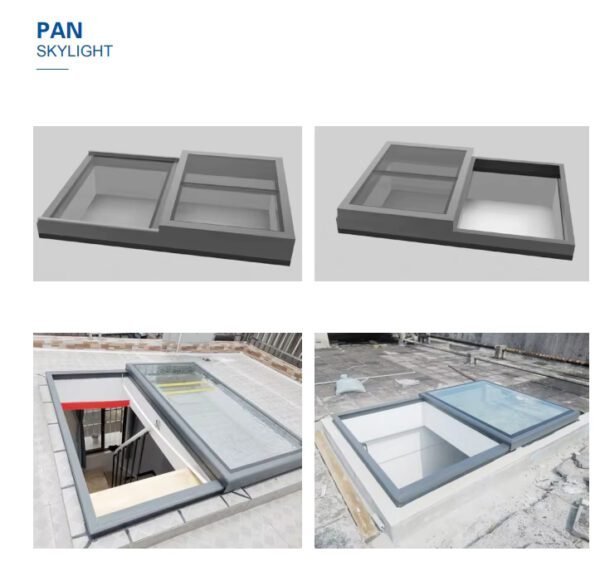

- Our sky lights are available in single-sided or double-sided sliding, suggested to suit the actual site conditions
- This exclusive Tender system permits maximum flexibility of use, as each pair of modules can be opened and closed independently
- Skylights are available in single-sided or double-sided telescopic sliding(multi telescopic 2,3,4,5,6,7,8,9), suggested to suit the actual site condition
- Bottom rail made up of polished bright bar(aluminium, stainless steel), which is supported by heavy-duty beam
- Bottom steel with nylon rollers with bearings is used for smooth operation
- Various residential, commercial & industrial skylight designs available to suit the client’s choice
- Quick-release disengaging mechanism inside sliding skylights enables changeover to manual operation in case of power failure
- Optical beam sensor: A Safety device to detect the presence of reversal of gate movement
- It can be integrated with any kind of access controller system, i.e., RFID device, Fingerprint and Biometric devices, Remote, card dispenser, and Push button, etc…
electric automatic roof window
| Window and door Type | Aluminum Roof Skylight Window |
| Type Option | Skylight |

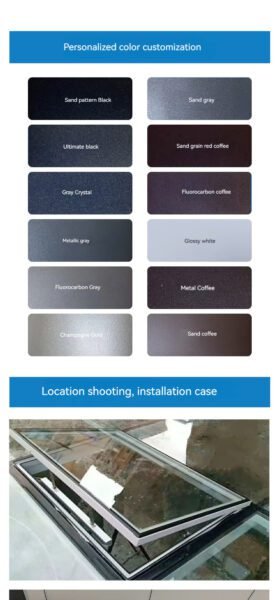

| Color | As you requested (standard color white, black, grey) |
| Size | As you request |
| Frame Material | Aluminum profile 1.6mm- 2.0mm thickness for window |
| Aluminum Option | Normal aluminum profile, Thermal-Break aluminum profile |
| Glass Option | Clear glass, Laminated glass, Tinted glass, Low-E glass, Frosted glass, all tempered glass Single glass: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm and etc Double glass: 5+9A+5mm, 5+12A+5mm, 6+12A+6mm and etc Triple glass: 6+9A+6+9A+6mm and etc |
| Hardware | High-quality customized stainless steel hardware |
| Mosquito Screen | Stainless steel and Nylon material for option |
| Opening Method | Inwards or Outwards, right or left hand opening as you requested |
| Roller shutter | Optional |
| Surface Treatment | Electrostatic powder coating, powder coating, anodizing, and electrophoresis coating |
| Motor | Customized hidden IP68 silent motor |
| Remote Controller | Customized wall-mounted and handheld remote controllers |
| Remote Wi-Fi Control | Connects to the smart home system, supports voice control |
| Wind and Rain Sensor | Automatically closes skylight during wind and rain |
| Motor Design | Hidden motor, simple and elegant overall appearance |
| Welding Process | Seamless welding at four corners, first-class waterproof performance |
| Delivery time | 15~38 days after receiving the customer’s deposit, the balance before loading the container |
| Safety | Aviation-grade aluminum, customized laminated glass, equipped with stainless steel mesh screens |
| Advantage | Excellent weather resistance / excellent heat insulation and energy saving / excellent water resistance / excellent sound proofing / corrosion resistance / excellent fire proofing / attractive appearance / environmentally friendly/durable performance / easy to clean/low maintenance |
SPECIFIATIONS
| PRODUCT | Automatic Motorised Swing Roof Skylights |
| RETRACTABLE DIMENSION | |
| Width Min./Max. | Single Leaf: 600/12000mm Double Leaf: 1200/24000mm |
| Height Min./Max. | 500/3800mm Larger Dimension on request |
| Telescopic Width Min./Max. | Single Leaf: 600/16000mm Double Leaf: 1200/32000mm |
| Telescopic Height Min./Max. | 1000/4800mm Larger Dimension on request |
| Opening Direction | Horizontal |
| Mounting Location | Inside/ Outside (retractable roof) |
| Mounting Surface | Bottom Rail: RCC |
| RETRACTABLE DESIGN | |
| Pattern | Standard Steel Tubular pattern or Customised Fabrication design |
| Internal vertical member | Heavy Duty Vertical and Horizontal Box sections (or Customised design available on request) |
| Bottom Rail | Polished bright bar(round) with beam or C-channel support Dual track bottom rail for large opening gates as per design (Aluminium Steel, Galvanised steel, Stainless Steel) |
| Bottom Rollers | Heavy Duty Bottom Nylon Wheel with both side bearings and Wheel cups (Galvanised Steel, Stainless Steel) |
| Glazing Sheet | Solid Compact Polycarbonate Sheet available in variant colours & sizes |
| Embossed Sheet | Solid Embossed Polycarbonate Textured Sheets with Ultra Violet Coated |
| Multiwall Sheet | Multiwall Polycarbonate Sheets with high quality of Ultra Violet Resistance, Solar Control, Weather Resistance |
| PATTERNS/DESIGNS | |
| Other available material | Stainless Steel, Aluminium Steel, Galvanised Steel |
| Sheets | GI / Aluminium sheets, Polycarbonate / Acrylic / PVC Sheet / Glass / Wood / WPC Wood / Fundermax panels |
| Ornamental Designs | On Request or as per the client’s or architect’s design. |
| Options Available | Spikes as per requirement. Any type of customised design can be made on request. |
| FINISH | |
| Surface Finish | Standard: Primer Finish, Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
| DETAILS FOR AUTOMATION SYSTEM | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single(A.C & D.C)/Three Phase |
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single(A.C & D.C)/Three Phase |
| Emergency Operation | Manual release knob |
| Accessories (Optional) | Operational Accessories
|
MAJOR FEATURES of SKYLIGHTS
1. Durable
Constructed from virgin high-strength aluminum alloy, seamless welding technology: ventilation and lighting effect, with a long service life!
2. Stable system

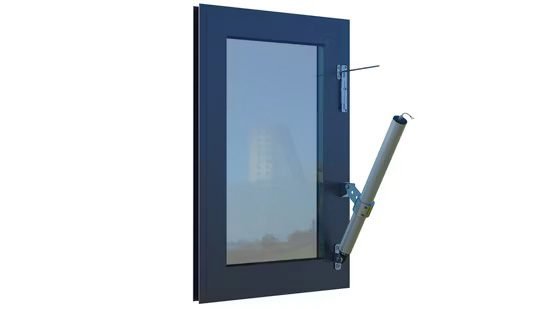

Driven by the chain motor unidirectional power output (fixed pulley group principle), driven by the window body has a rule of smooth outward movement to launch, and the system activity is stable.
3. Large opening area
The opening angle can be up to 80 degrees, which can effectively achieve the effect of ventilation and lighting.
4. Motor brand
Adopting a domestically famous Dua motor, the activity of the window is stable.
Optional Italian nekos motor, motor service life up to ten years!
5. Impact resistance
High security, can withstand a variety of loads, can be up the 12 levels to
The overall structural safety in the case of high winds.
6. Complete profiles
Three kinds of ordinary aluminum alloy profiles, a broken bridge aluminum profile
7. Scope of application
Basement, sloping roof, rooftop, sunroom.

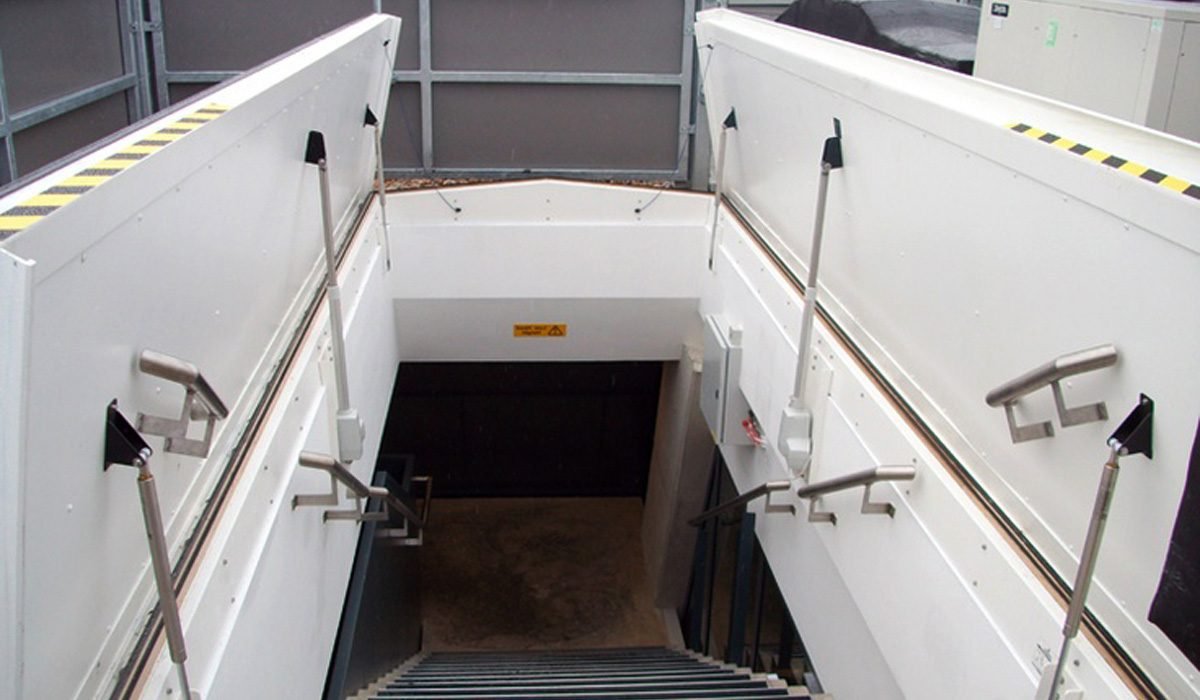

Electric Motorized Swing Underground Roof Skylight
