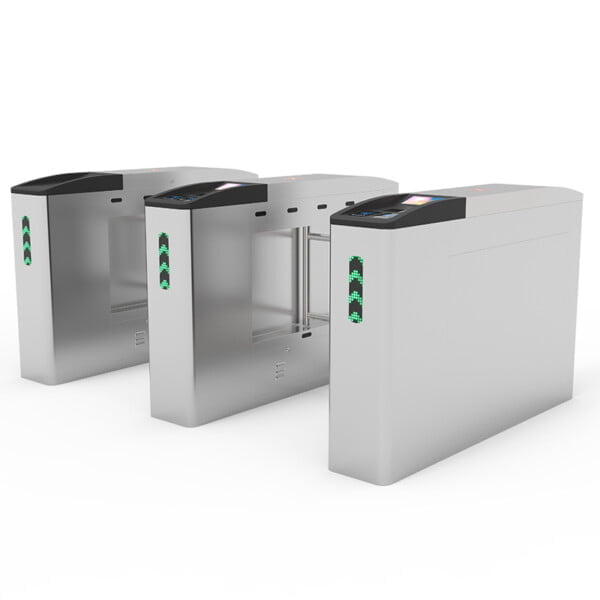

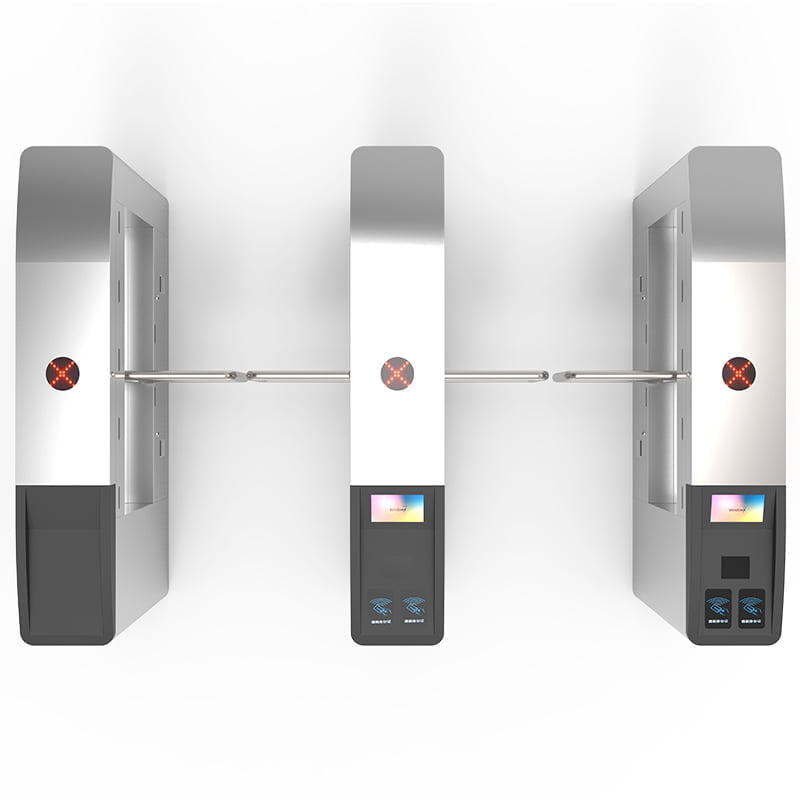

Exhibition Building Glass Swing Barrier Turnstile Speed Gate
Swing Barrier Turnstile Speed Gate: Imagine a doorway that uses fins instead of a swinging door. That’s kind of like a flap barrier, but instead of swinging open, the fins rinse up to let one person pas through at a time. You see them a lot at places like train stations or office buildings. They help control the flow of people and make sure only authorized people enter. They often work with a security card or even facial recognition so only people with permission can get the fin to rise up and let them pass.
Basic Function
1. The entry and exit direction can be set independently, free mode/forbidden model
2. Automatic reset function: The speed gate will open the arm after receiving the valid opening signal when standby. The speed gate will return to the hindered zero position automatically under the following situation:
–within the allowed time, pedestrians have ben detected to pass through the passageway in specified direction;
–over the allowed time, there is no people passing through the passageway.
3. self-recovery function: The speed gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gat automatically return to the hindered zero position.
4. Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction
5. Compatibility: Equipped with dry contact signal input interface can make sure compatible with all kinds of access controllers
Product Technical Parameters
| Model Number | MR B351 |
| Product name | Exhibition Building Glass Swing Barrier Turnstile Speed Gate |
| Application | Security Access Control Management |
| size | 1400*280*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 70KG / double core movement: 80KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this speed gate Glass Swing Barrier?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier turnstile?
Yes, the swing barrier turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
