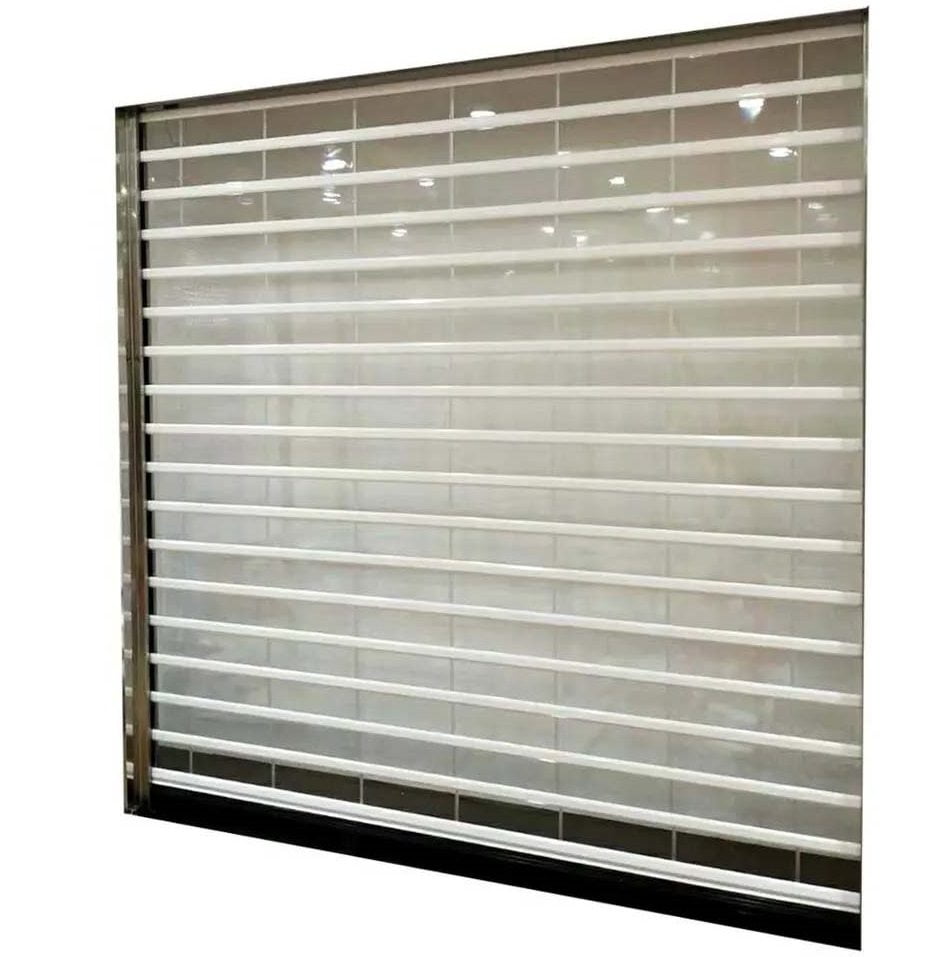

Transparent Roller Door
Rolling Shutters is generally a power drive with an electric motor and gearbox. The automatic rolling shutters are made up of Mild steel, Aluminum, galvanized steel, and stainless steel. These types of shutters are very economical structures and devices for hassle-free opening and closing of shutters.
Transparent Roller Door shutters are highly popular as well as widely used solutions, offered at affordable prices. These are the robust structures of high strength. They function as a shield as well as protection against vandalism, burglary, and storms. Transparent rolling shutters boast easy operation and a high level of durability.
- Constructed with different thicknesses of polycarbonate ( usually 5 – 6mm Thick), Polycarbonate Shutters provide great resistance against severe weather and protection against UV. professional anti-rust Technology, which makes the roller door beautiful, durable, and base. The surface is smooth and easy to clean, the surface of the wafer is very smooth and easy to clean, and with a high-quality stainless steel tube, the entire gate will not rust.
Specification:
| Technical Specification | Description | ||
| Product | Automatic Transparent Roller Door | ||
| Brand | MR. TECH | ||
| Model No | MR-RSGD91 | ||
| Application | Residential, Industrials, Commercial, etc. | ||
| Optional products | Manual, Semi-Automation, Automatic. | ||
| Door Dimension | |||
| Width Min./Max. | 1000/3000mm | ||
| Height Min./Max. | 1000/5000mm Max. Area 15.0Sqm Large dimensions on request | ||
| Mounting Location | Vertical | ||
| Heat Insulation | Inside | ||
| Mounting Surface | Concrete, Steel | ||
| Opening/Closing Speed | 0.05m-0.1m/sec | ||
| Door Structure | |||
| Slat Material | Polycarbonate (3 mm thick) | ||
| Slat Profile | Flat profile interlocked by SS-linked rods. | ||
| Side Guide Profile | Aluminium profile with Rubber inserts on both ends. | ||
| Bottom Profile | Aluminium profile with Bottom Rubber sealing | ||
| Side Brackets | M.S plate 3mm to 10mm, as per the opening dimension | ||
| Surface Finish | Standard Off White Color Special Color on request | ||
| Details for Automation System | |||
| Control Type | Casing made of compact impact-resistant material, incorporating operating buttons for shutter operation.
Specific IP rating provided as per the requirement. Deadman / Pulse Control suggested application-wise. |
||
| Drive Type | Imported make Indirect/Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc.
Drive with integral braking system with Long life expectancy, CE Certified drives complying with European standard |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Protection Class | IP44/IP54 | ||
| Accessories (Optional) can be integrated with advanced control |
|
Features
- MRM TECHNOLOGY EXIM transparent Roller Door are constructed from interlocking polycarbonate slats.
- Suitable for internal applications where aesthetics are more focused
- These slats are provided with an SS rod, which gives strength to the shutter.
- Specially designed heavy-duty Extruded Aluminium Bottom profile
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Our shutters have built-in high-performance drives and intelligent, smart controls
- Heavy-duty drives have a weight carrying capacity up to 2000 kg.
- In case of power failure, shutters can be operated manually using a hand crank or chain drive
- Shutter drives are inbuilt with a special anti-drop device and an additional safety catch to ensure that the door does not free-fall in any worst conditions
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |

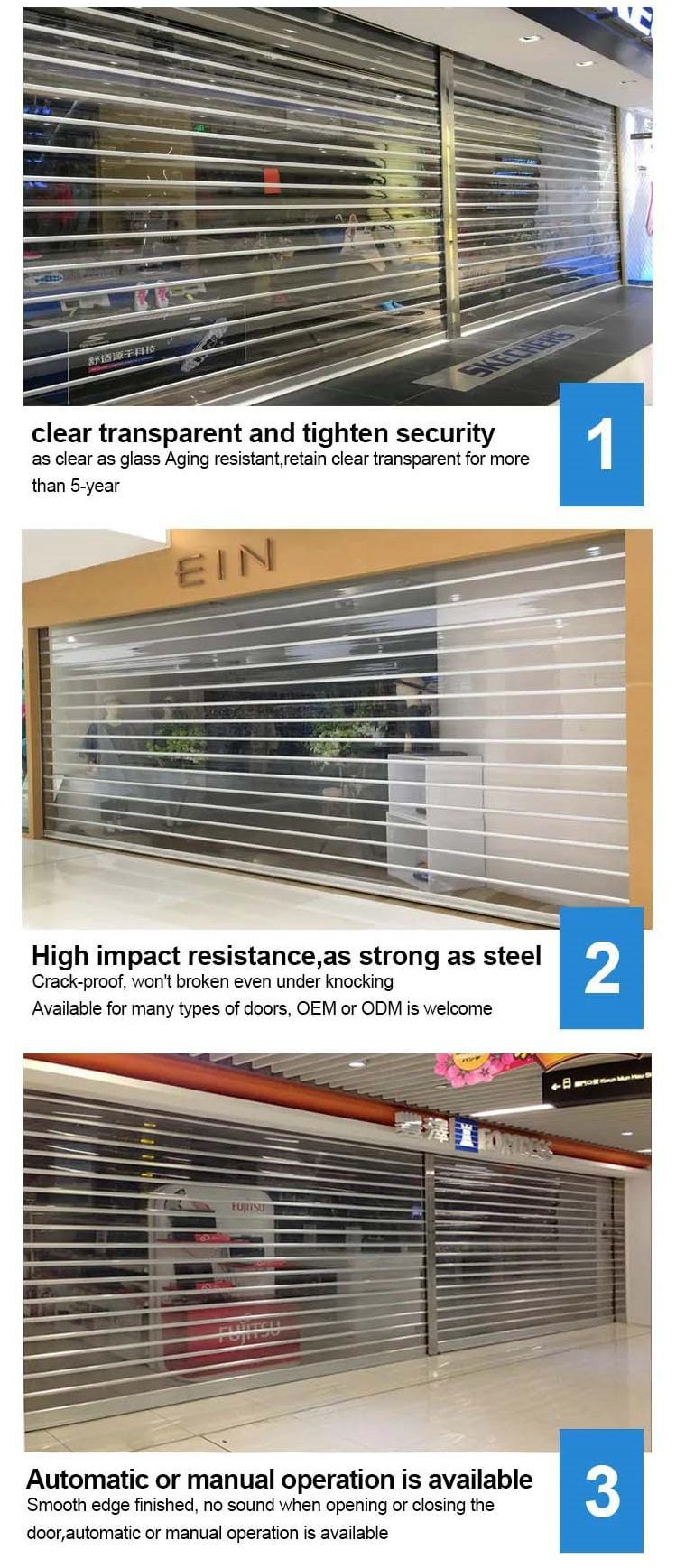

Features of Transparent Roller Doors:
The combination of high visibility with exceptional strength makes our polycarbonate transparent roller shutter doors ideal for shops that want to keep valuable goods on display, such as jewelers. Also, these shutters are a good choice for premises that require a higher level of security for Example banks.
- Glass like transparent but stronger in material.
- These rolling shutters can be used as both external and internal doors.
- High-level protection
- These rolling shutters give longer product life.
- Longer product life, Fade proof.
- We can customize it as per client requirements.
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
