Telescopic Sliding Glass Door System With Electric Sensor

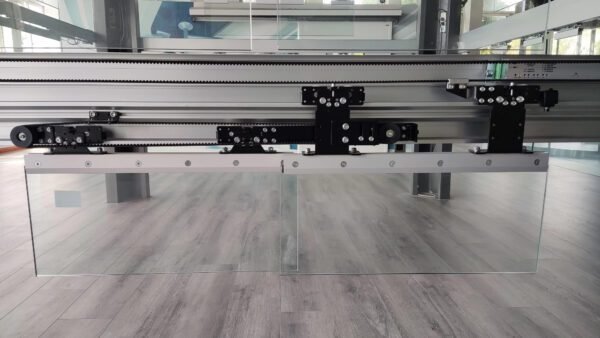

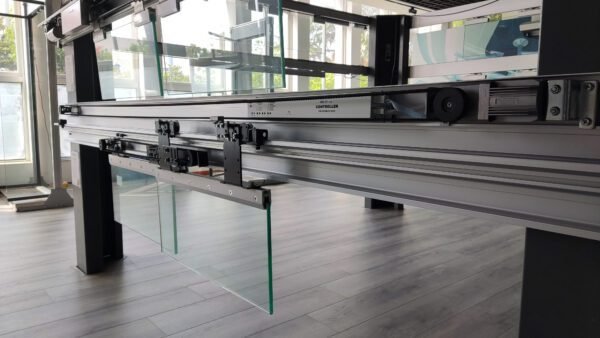

Physical Product Show
- Stable and smooth
- Stable and smooth operation, strong power, low failure rate

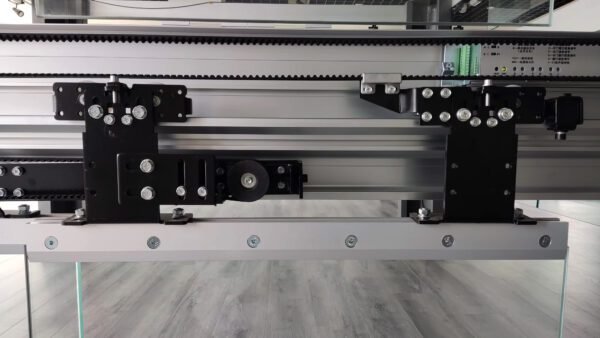

New galvanized hangers
- The first time to use the entire system of blackened galvanized Hanger parts, a
- fashionable, simple atmosphere, rust-resistant, and dynamic

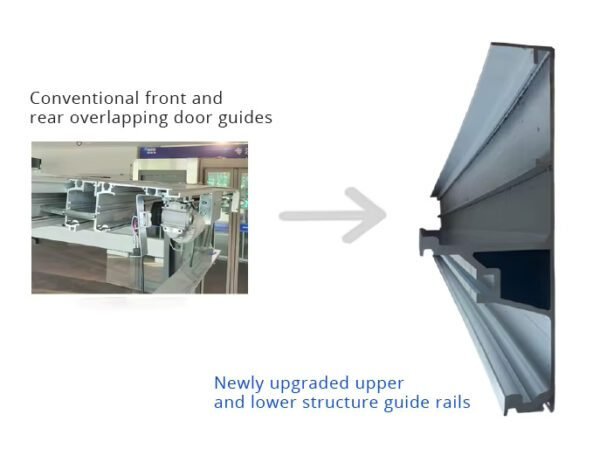

Easy install
- In the past, overlapping doors were designed to be installed with front and back connections, which was troublesome and laborious.
- Nowadays, the guide rail adopts up and down structure design, easy and efficient installation, and maintenance.
Rebounding in case of obstruction
- Bi-directional automatic rebound function in the event of obstruction, more outstanding safety performance.
- No need to worry about being pinched
About this product
- Efficient and Reliable Operation: This automatic sliding door system is powered by a high-quality DC motor with a rated power of 80W and a brushless DC design, ensuring smooth and quiet operation. The system is suitable for applications in schools and malls.
- Customizable Opening and Closing Speed: The DBS-51 allows for adjustable opening and closing speeds of 15-50cm/s, catering to various needs and preferences. This feature is especially beneficial for users who require tailored performance.
- Durable and Versatile Design: Constructed from high-quality aluminum and alloy materials, this automatic sliding door system boasts a modern design and can accommodate various door forms, including single and double doors, with a maximum weight capacity of 2x150kg or 4x100kg.
- Advanced Safety Features: The system is equipped with an electric sensor, providing enhanced safety and security. This feature is particularly useful in high-traffic areas such as schools and malls.
- Comprehensive After-Sale Support: The DBS-51 offers online technical support and free spare parts, ensuring that users receive prompt assistance and maintenance services for the entire 2-year warranty period.
Technical Specifications
| product name | Telescopic Sliding Glass Door System With Electric Sensor |
| Design Style | Modern |
| Model Number | MR150A |
| Door form | double-door leaf / Four-door leaf |
| Carrying weight | ≤Max;2X150Kg,Max;4X100kg |
| Door width | 1200-2700mm,2200-3900mm |
| Power supply voltage | AC110-220V, 50/60Hz |
| Standard Size: | 4200mm |
| Rated Motor consumption power | 80W (Brushless DC) |
| Door opening travel speed | Door opening speed: 15-50cm/s (adjustable) Closing speed: 15-50cm/s (adjustable) |
| Hold Opening hours | 1-10S adjustable |
| Temperature range | -20 ~ +50°C |
| Manual opening and closing force | >100N |
| Humidity range | <relative humidity 85% |
| After-sale Service | Online technical support |
| Motor | DC24V brushless |
| Controller | Microcomputer control |
| Guide rail length(Optional) | 2100mm,4200mm,4800mm,5000mm,6000mm |
| Material | Aluminum alloy |
| Sliding noise | ≤55dB |
| Warranty | 2 years |
| Keyword | Automatic Sliding Glass Door Operator at a low price |
| Application |
airports, hospitals, office buildings, stations, banks, factories, hotels, shopping centers, hotels, office buildings, financial and financial institutions, companies, and high-end residential |

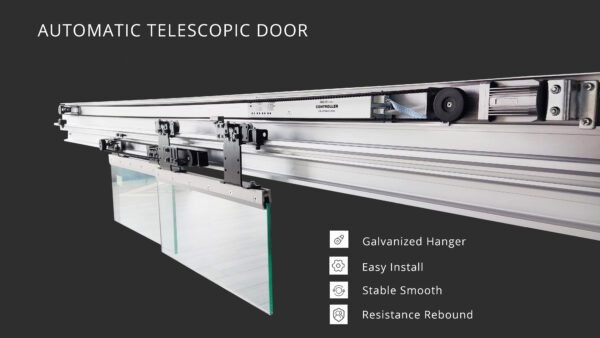

Telescopic Sliding Glass Door System
Product Features
- Intelligent control system, all kinds of parameters can be flexibly adjusted.
- Self-learning starts at startup, and the parameters are automatically adjusted according to the actual door width to achieve the best running state.
- It can be adjusted manually if necessary.
- Brushless motor (BLDC) with low friction and long service life.
- Â Smooth opening and closing with low noise.
- Unique electric lock function, safe and reliable, double-door interlocking, and electric lock function, supporting a variety of access control systems.
- Backup power supply is optional; when the power failure, it can keep the door open or closed.
- After the door is fully closed, keep it closed tightly.
- The installation is simple and convenient.
