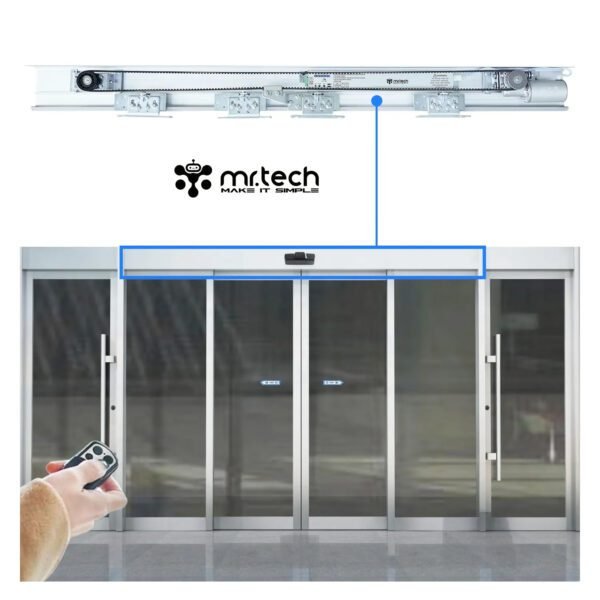

Automatic Sliding Entrance Door Opening System for Restaurants
Automatic sliding doors are increasingly popular in restaurants due to the numerous benefits they offer, including enhanced accessibility, improved hygiene, energy efficiency, and a more sophisticated aesthetic
About this product
- Efficient Operation: The MR.TECH MR150A Brushless Motor 150kg Automatic Sliding Entrance Door Opening System offers efficient operation with a power consumption of 70W and a rated power of 65W, making it an energy-saving solution for various applications.
- Durable Construction: Constructed from high-quality aluminum alloy, this automatic sliding door opener is built to last, ensuring a long service life and minimal maintenance requirements.
- Wide Application: Suitable for various settings, including hotels, office buildings, and supermarkets, this product can be easily integrated into existing infrastructure, providing a convenient and hassle-free experience for users.
- Low Noise Operation: With a sliding noise level of 55dB, this automatic door opener is designed to minimize disruptions, making it an ideal choice for residential and commercial spaces where noise levels need to be kept to a minimum.
- Comprehensive Support: Enjoy online technical support and free spare parts for up to 2 years, providing peace of mind and ensuring uninterrupted operation of the automatic sliding door opener.

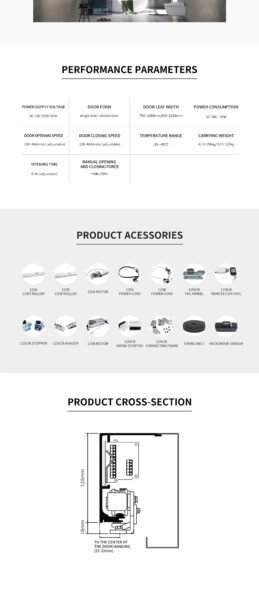

Technical Specifications Data
| product name | Automatic Sliding Entrance Door Opening System for Restaurants |
| Design Style | Modern |
| Model Number | MR150A |
| Door form | Single-door leaf / double-door leaf |
| Carrying weight | ≤1×150kg,≤2×125kg |
| Door width | 750-1600mm,650-1250mm |
| Power supply voltage | AC110-220V, 50/60Hz |
| Standard Size: | 4200mm |
| Optional Using door | Sliding Entrance Door, wooden door, ss steel door, ms iron door, glass doors, and aluminum frame door |
| Rated Machine consumption power | 65W (150A), 50W (150B) |
| Door opening travel speed | Door opening speed: 150-460mm/S (adjustable) Closing speed: 130-460mm/S (adjustable) |
| Hold Opening hours | 0-8S(adjustable) |
| Temperature range | -20 ~ +50°C |
| Manual opening and closing force | <40N,<50N |
| Humidity range | <relative humidity 85% |
| After-sale Service | Online technical support |
| Motor | DC brushless |
| Controller | Microcomputer control |

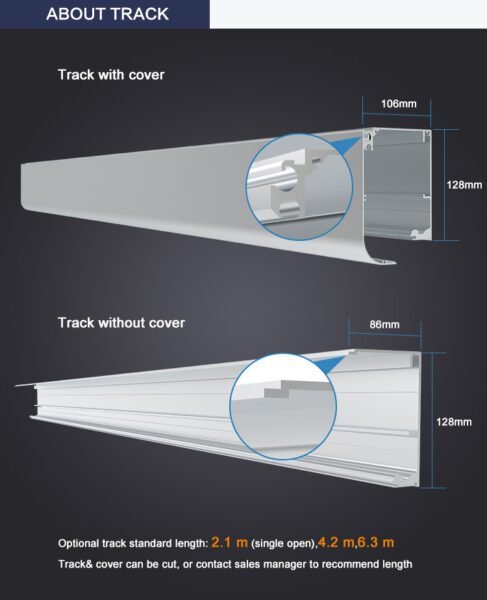

| Guide rail length(Optional) | 2100mm,4200mm,4800mm,5000mm,6000mm |
| Material | Aluminum alloy |
| Sliding noise | ≤55dB |
| Warranty | 2 years |
| Keyword | Automatic Sliding Glass Door Operator at a low price |
| Application |
Hotel, Office Building, Supermarket |

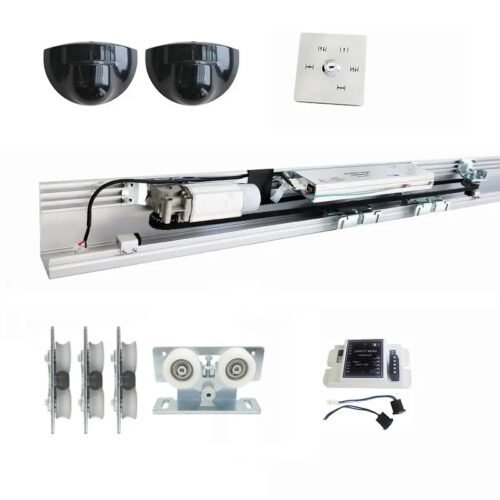

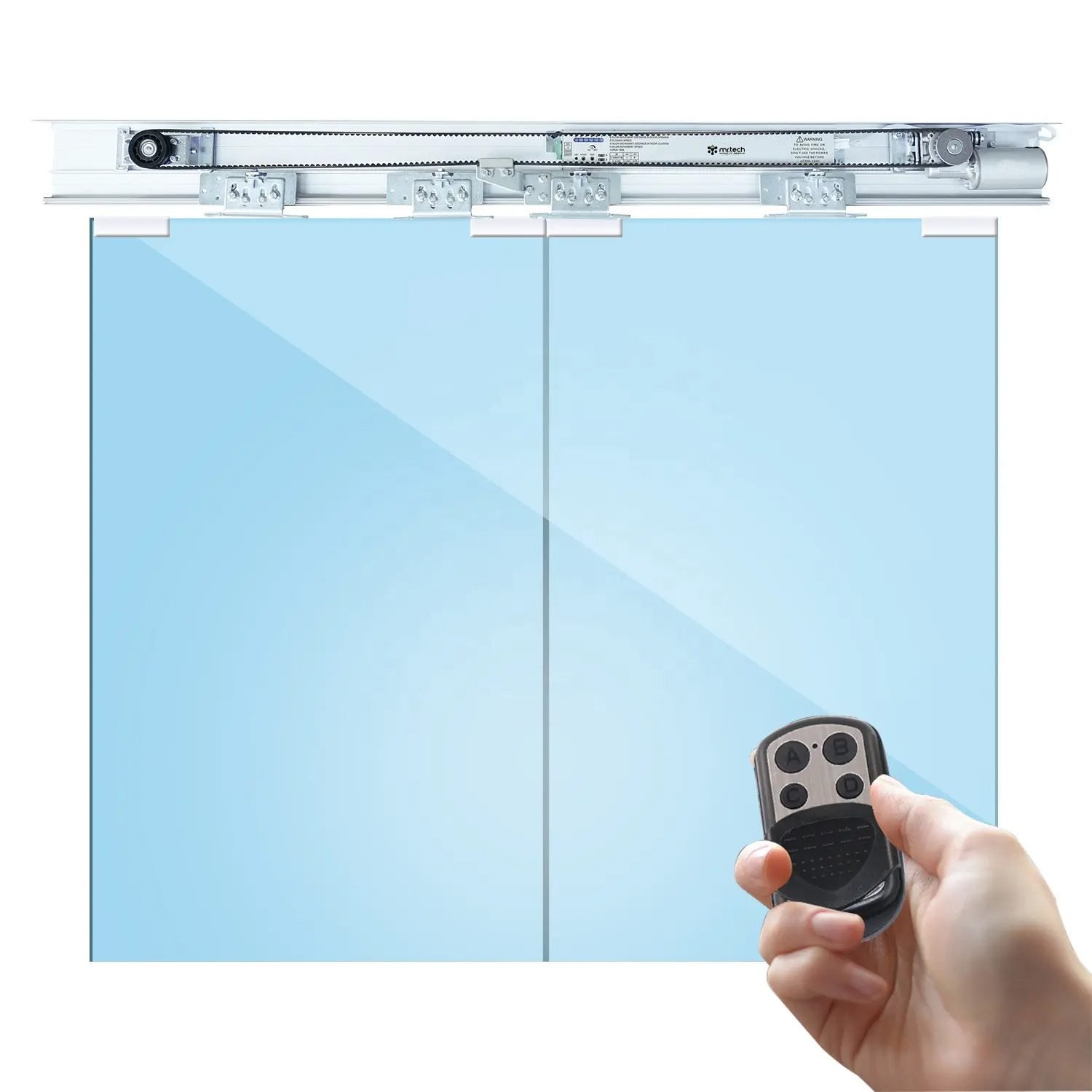

Automatic Sliding Entrance Door, Optional Four-speed key switch, and Safety beam （single）

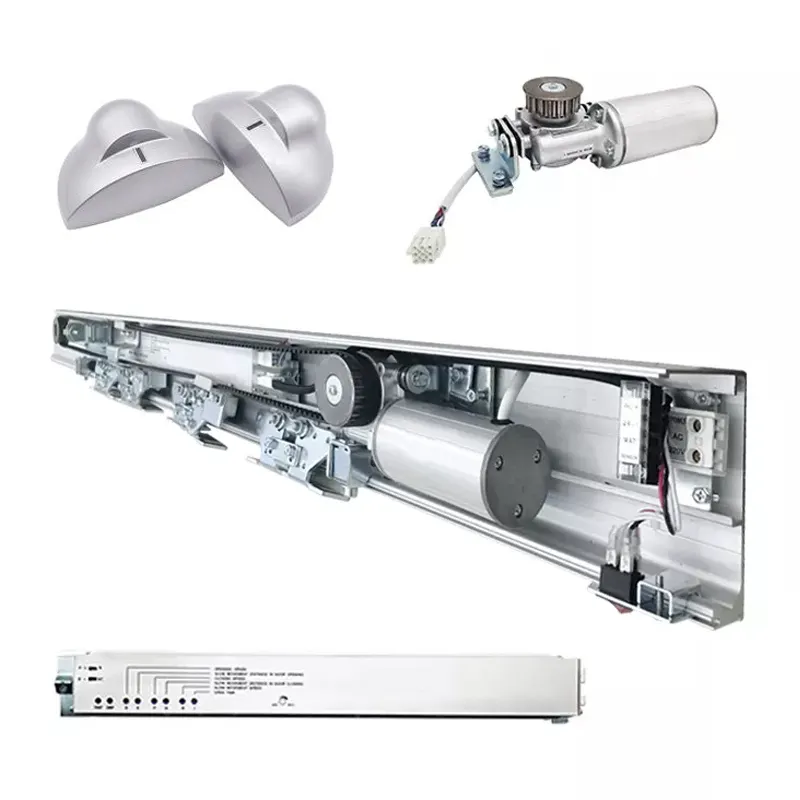

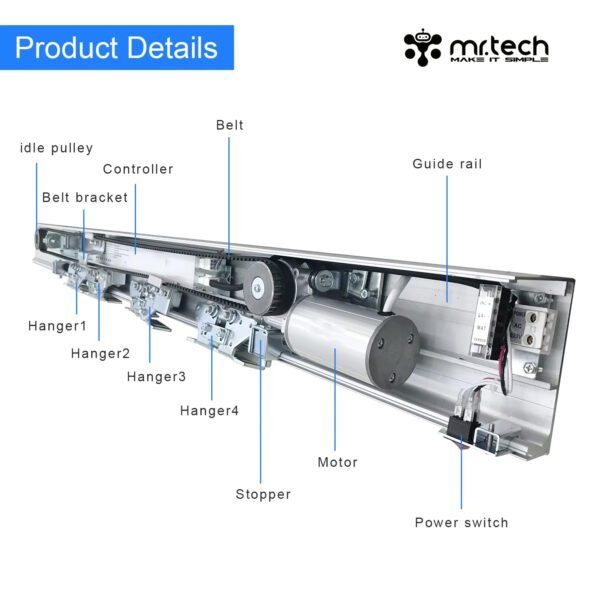

150A 65W DC Brushless Motor [Round motors with more load capacity]
150B 50W Dc Brushless Motor [Square motor opens doors to a larger size]
Product Advantage
- Adopting European motor and gearbox integration technology, the drive is strong, the operation is stable, the output power is improved, and it can adapt to the needs of larger doors.
- The microcomputer control system drives the motor and controls the door to operate in the set mode. Wide voltage power supply design, many interface such as double door interlock.
- Special lubrication measures, special deceleration mute wheel, professionally designed hanging parts, and roller structure greatly reduce the running noise.
- Every time there is a self-test procedure, the door will rebound when it encounters resistance, which fully guarantees the safety of the passersby.
- Suitable for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, hospitals, and other places.
