Telescopic Glass Sliding Doors Operator for Residential
About this product
- Durable and Versatile Design: The MR. TECH MR50 is a high-quality automatic glass door mechanism suitable for various applications, including hotels, office buildings, banks, shopping malls, restaurants, and more. Its modern design ensures a sleek and sophisticated look that complements any commercial space.
- Effortless Operation: With a manual force of 30N for single leaf and 40N for double leaves, the MR. TECH MR50 requires minimal effort to operate, making it perfect for areas with high foot traffic.
- Wide Range of Door Sizes: The MR. TECH MR50 can accommodate door leaf widths of 600-1800mm and 1000-3000mm, providing flexibility for various door installation requirements.
- Reliable Performance: The MR. TECH MR50 operates smoothly and efficiently, with an opening speed of 200-500mm, ensuring a seamless and convenient experience for users.
- Long-Lasting and Easy Maintenance: With a 2-year warranty and online technical support, the MR. TECH MR50 offers peace of mind and easy maintenance, ensuring the door remains in top condition for years to come.
Technical Specifications
| product name | Telescopic Glass Sliding Doors Operator for Residential |
| Design Style | Modern |
| Model Number | MR150A |
| Door form | double-door leaf / Four-door leaf |
| Carrying weight | ≤2x150kg/≤4x100kg |
| Door width | 1200-2700mm,2200-3900mm |
| Power supply voltage | AC110-220V, 50/60Hz |
| Standard Size: | 4200mm |
| Rated Machine consumption power | <100w |
| Door opening travel speed | Door opening speed: 300-550mm/s(adjustable ) Closing speed: 200-550mm/s(adjustable ) |
| Hold Opening hours | 1-10S adjustable |
| Temperature range | -20 ~ +50°C |
| Manual opening and closing force | >100N |
| Humidity range | <relative humidity 85% |
| After-sale Service | Online technical support |
| Motor | DC brushless |
| Controller | Microcomputer control |
| Guide rail length(Optional) | 2100mm,4200mm,4800mm,5000mm,6000mm |
| Material | Aluminum alloy |
| Sliding noise | ≤55dB |
| Warranty | 2 years |
| Keyword | Automatic Sliding Glass Door Operator at a low price |
| Application | Hotel, Office Building, Supermarket |
Product Advantage
- Â The controller has a built-in chip that can be intelligently adjusted to realize the automatic setting control process. The parameters can be flexibly set as needed to maintain optimal operation.

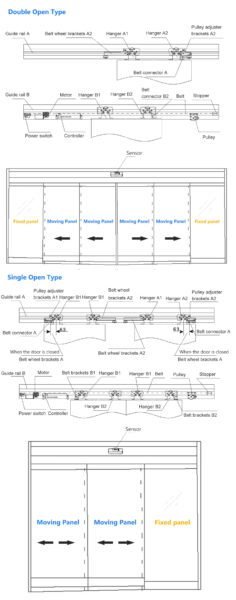

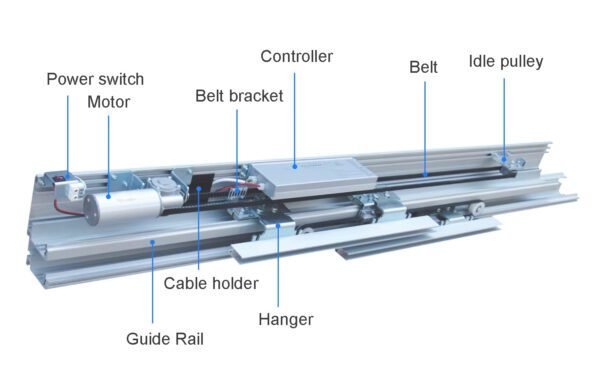

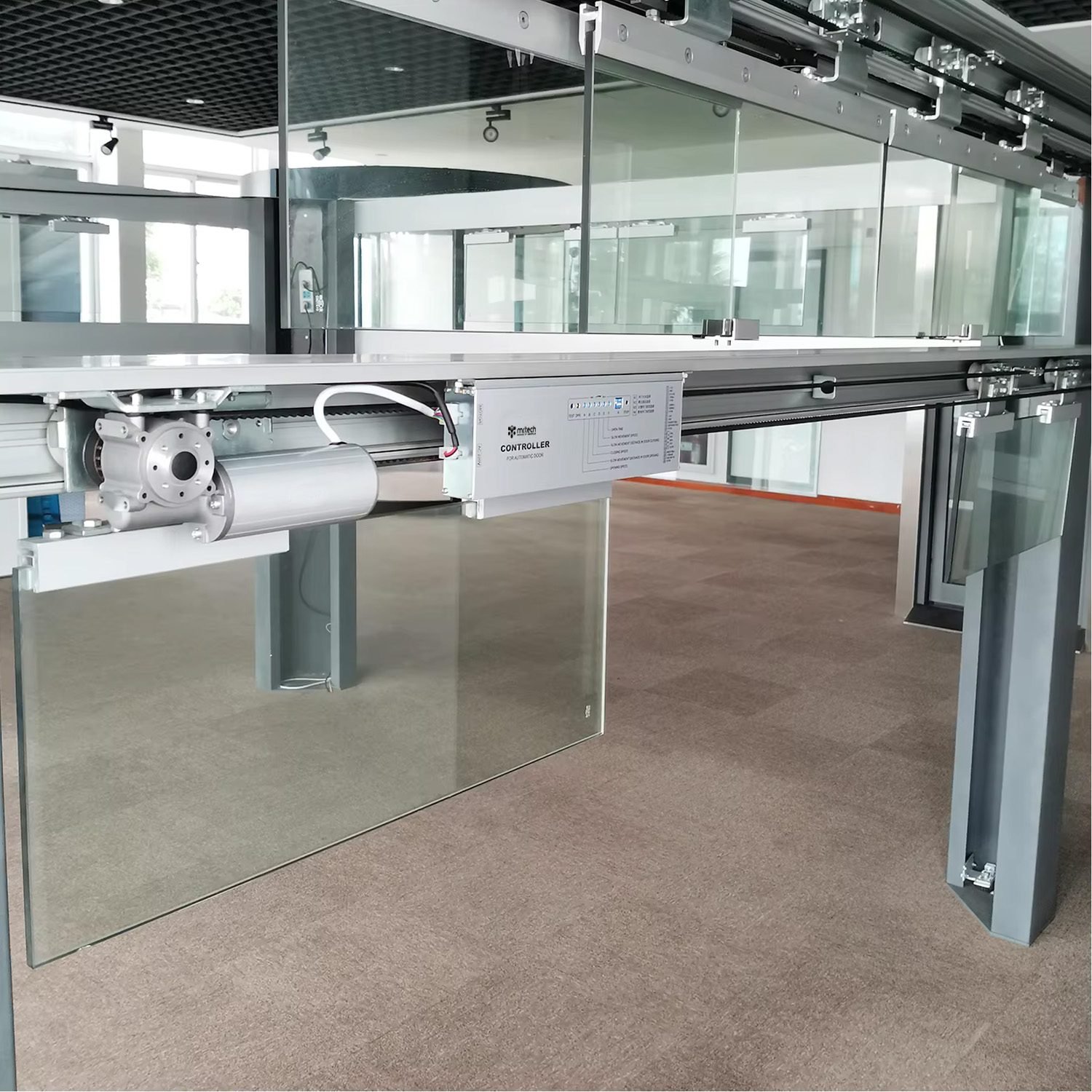

- Two kinds of high-strength aluminum alloy guide rails are combined and connected with special accessories, which are easy to install and overall firm and beautiful. The overlapping door bodies are interlocked 2. by the pulleys, and the operation is stable and reliable.
- A high-quality EPDM strip is embedded in the middle of the rail slide section to absorb vibration and noise during operation, and the automatic door runs quietly.
- Two-way resistance automatic rebound function, safety performance is more prominent, it is applicable to airports, hospitals, office buildings, stations, banks, factories, hotels, shopping centers, hotels, office buildings, financial and financial institutions, companies, and high-end residential and other places that require big clean opening.
