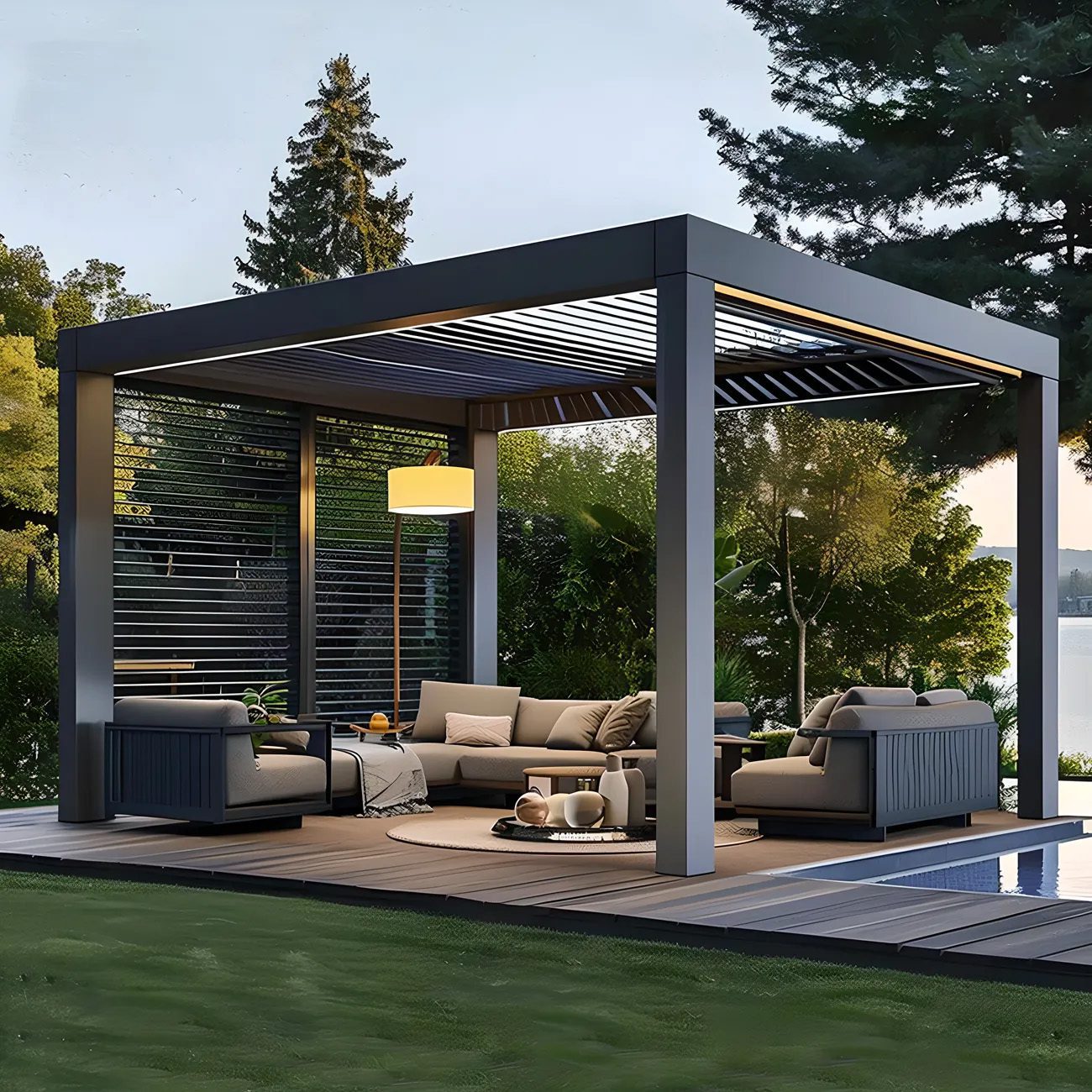

Bioclimatic Aluminium Pergola with Remote and LED Light
Technical Parameter
| Model NO. | Bioclimatic Louvered Aluminium Pergola |
| Product Name | Bioclimatic Aluminium Pergola with Remote and LED Light |

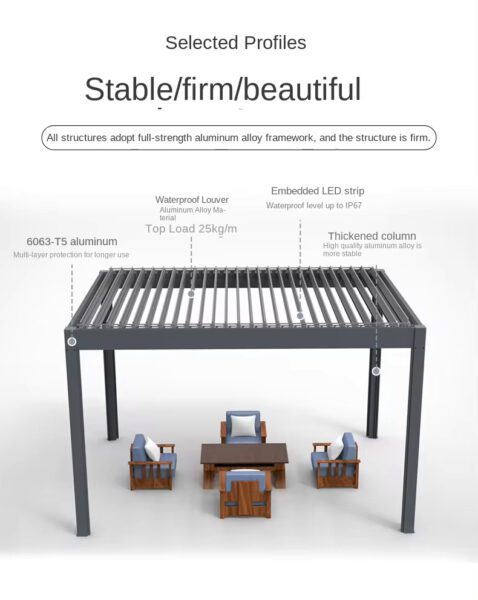

| Cover Material | Aluminum Alloy 6063 T5 |
| HS Code | 7610900000 |
| Assembled Product Dimensions (L x W x H) Size | 3.0x3x2.0m/148kg |
| Cover Coating | Powder Coated |
| Condition | New |

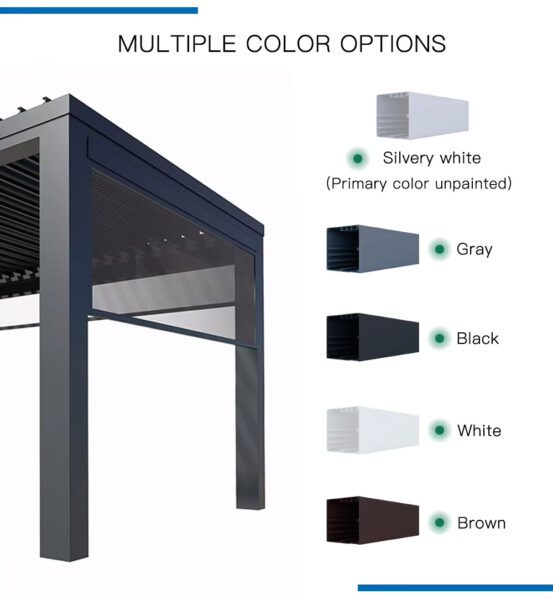

| Standard colors | black, white, grey, brown RAL7016, 9005, 9016, also other colors are available |
| Optional Color | Any color can be customized on the RAL color board K7 with a full container quantity |
| Customized | 3×3×2.3m/117.4kg, 3×4×2.3m/113.4kg, 4×4×2.3m/172.5kg and Customized |
| Garantee | 10years |
| Surface Powder coating | warranty 10 years |
| After-Sales Service | Online Technical Service |
| Operation | Motorize (Voltage 110-220V ;Patent transfommer technology |
| Motorization | 1 motor |
| Remote control | Multi-functional,11 different channels to control different devices, the user can also control with the Tuya App. |
| Product Include | Aluminium Louvre roof, Post *4pcs, Foot plate *4 pcs, Led light *3 pcs, Remote control *1 pc, Transformer *1 pc. |
| Blinds | Electrical or manual |
| Feature | Easily Assembled, Sustainable, Eco-friendly, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Waterproof |
| Delivery Time | 20-25 days after payment is received and drawings are confirmed |
| We Offer | 3D Effect Design Drawing |
| Frame Finishing | Powder Coated |
| Solution | Sun Shading and Waterproof |

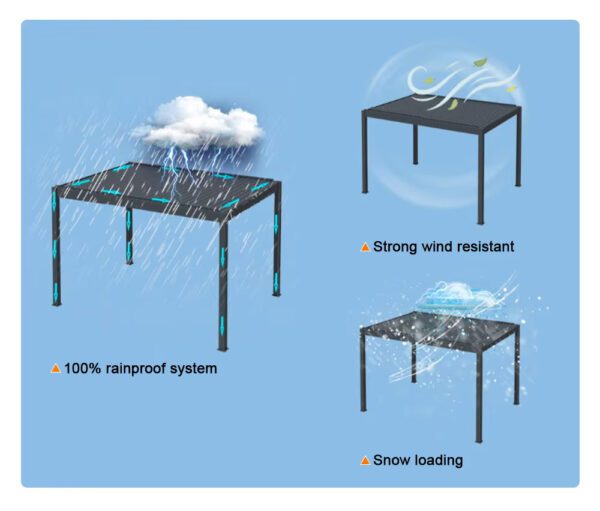

| Wind Resistant | Up to 120 km/h for closed louver |
| Snow load | Up to 110 kg/m² |
| Optional accessories | Electric Blinds, LED lights, Wind and rain sensor, etc |
| Additional functions | Rain sensor, Ceiling fan, beam, AC, Heater, Ceiling fan |
| Additional Products | Zip Screen, Curtain, Sliding Glass Doors, Bifolding Glass Doors, Aluminium Shutters, Plantation Shutter, Slats |
| Practical Function | Waterproof and Sunshade |
| OEM/ODM | Available (SU model and render pictures could be offered ) |
| Louver LED lights | Cold white and warm yellow |

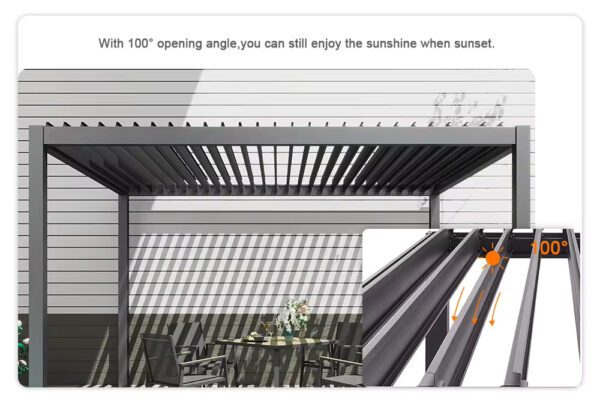

| Rotation of Louver | 0~90 Degree |
| Louver rotatable angle | Open & close range: 0-110° |
| Transport Package | Carton, Polywood Cases |
| Specification | Customized |
| Shipping | FOB /CIF: We offer full container loading free of charge and can assist in storing and incorporating your other supplier’s cargo into the container. |
| Warranty | Aluminium structure ten years, Surface treatment seven years, Motor three years, Electrical device one year. |

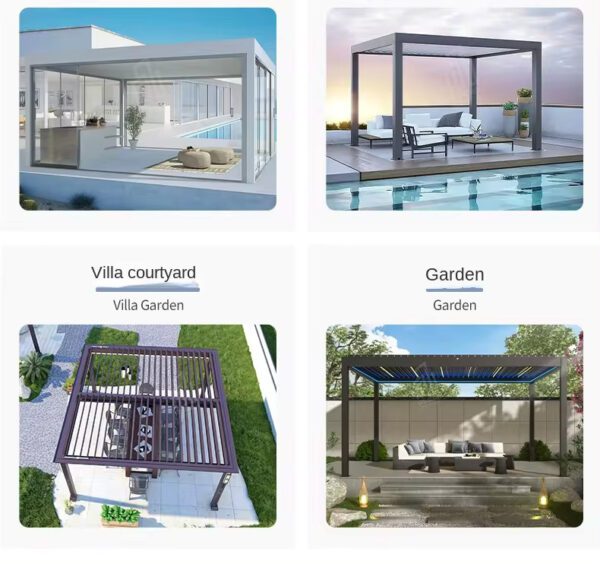

| Product Applications | Villa, Balcony, Garden, Swimming pool, Restaurant, Wall cladding, Outdoor Furniture, Doors and windows, Planters, Lawn and gardens, Marina, Docks, Shake roofs, Log houses, Playground equipment, Animal houses, Home, Exhibition, Shop, etc |
| Type | Arches, Arbours, luxury pergolas & Bridges |
Open up to a world of benefits
The MR. TECH Openable Roofing System was invented and perfected by MRM TECHNOLOGY to provide a roofing product that was unique in the marketplace – one that was made from strong extruded aluminium alloy and would offer benefits that were not previously available.
Versatility
Maximising the use of outdoor areas has always been a challenge. If you install a conventional roof, how do you avoid the problems of either blocking out natural light or creating a “hot house” with no breeze, especially on hot days? MR. TECH provides a versatile solution to meet diverse needs.
With the flick of a switch, the MR. TECH delivers total control of sun, shade, and light, as well as providing ventilation and rain protection
Energy Efficient
In winter, the MR. TECH louvers can be positioned to catch the sun’s natural warmth into rooms to save on energy costs. In summer, these same louvers can then be moved to block direct sunlight to protect the building from unwanted solar heating. Winter or summer – the MR. TECH provides the best of both worlds!
Light Control
With the simple push of a button, the louvers can be moved to give the desired lighting level in a building. Opened louvers reflect light into South-facing areas. The natural light illuminates work or living areas while providing savings in power consumption

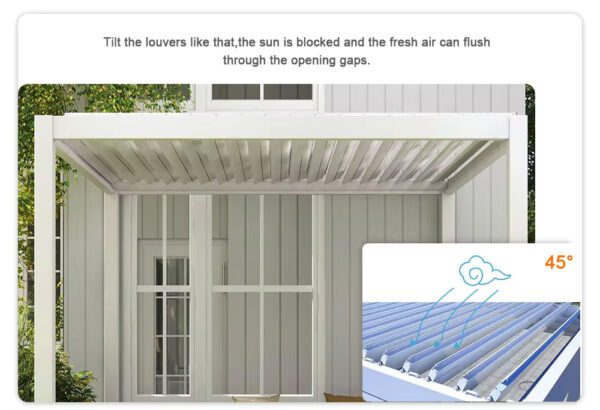

Ventilation

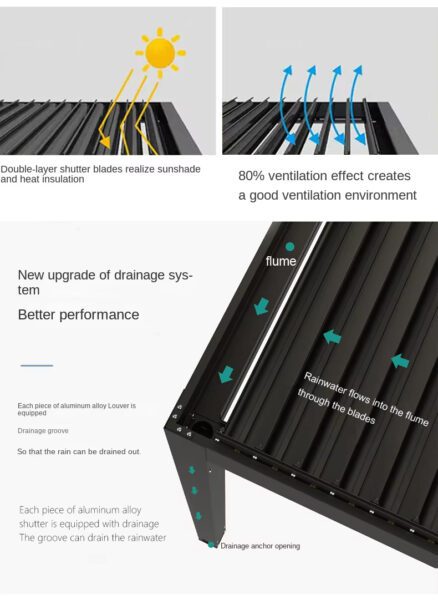

During the summer months, a place is often sought that provides shade from the sun’s heat as well as cool ventilation. The MR. TECH provides this by angling the louvers to a partially open position. Even in light rain, the louvers can still be left partially open, and the water will drain away in the contours of the louvers. And speaking of the entertaining area, Bar-be-que smoke can be ventilated for greater comfort

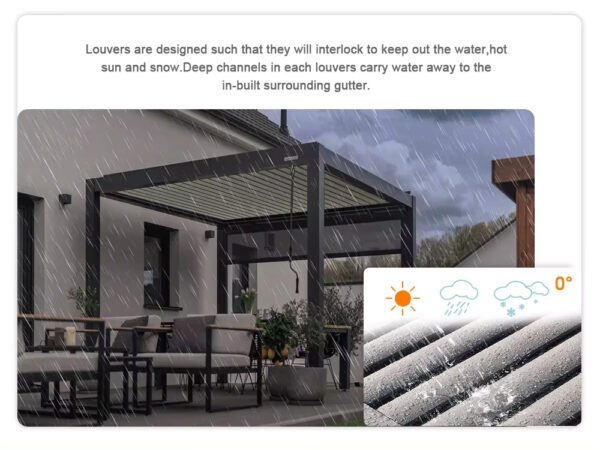

Rain Protection
The MR. TECH has a uniquely designed louver that provides complete overlap with no possibility of rain penetration. Tests show that high-pressure water could not penetrate the joints between the louvers.
Control Systems
The louvers rotate from closed to almost 180 degrees by use of a small 12-volt DC motor, which is powered by a transformer connected to a power outlet. This makes the MR. TECH is safe to use and incredibly easy to operate with your choice of control systems, viz, open/close toggle or rocker switch, multiple switch arrangements for indoor & outdoor use. Optional control options include remote control, rain sensor, automatic closing of louvers at the onset of rain and opening when the skies clear, and electronic sun tracking for sun/shade control, or even link to your home automation control system.
