DC 24V Electric Automatic Two Fence Barrier with Servo Motor
Specification:
| Brand | MR TECH |
| Model No | MR AFAB72-6M |
| Product Name | DC 24V Electric Automatic Two Fence Barrier with Servo Motor |
| Boom Length |  1 ∼ 6 Meters ( Customized Size Available ) |
| Optional Material and Case | MS Steel, Stainless steel, Galvanized Sheet, Electrostatic Spray |
| Arm Material | Aluminum Alloy |
| Open/ Close Time | 4 ∼ 8s Adjustable |
| Working Power Supply | AC 220V+10%Â 50HZ |
| Voltage |
DC 24V |
| Temperature Range | -40ºC ∼+70ºC |
| Current | 6.5A |
| Remote Control Distance | <30m~<50m |
| Remote Control Frequency | 430hz |
| Motor Power | 320w |
| Case Size | 1400*450*660 |
| Case Thickness | 1.5mm~2mm |

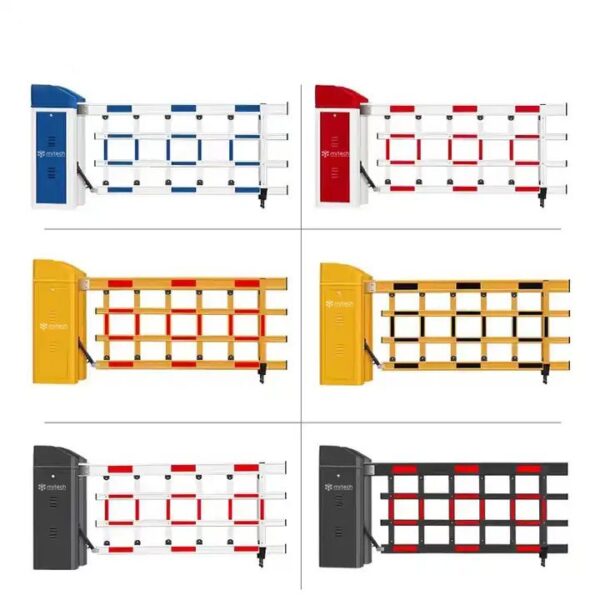

| Case Color |
Gray, Grey Golden |
| Optional Case Height | 1.4m/1.6 m/1.8m |
| Blade Size | H 75CM* W10CM* W0.5CM |
| Lever Center Height | 1.05m |
| Main Lever Size | 120mm*80mm*2mm(Thk) |
| Remote Learning | DC 80UNIT |
| Output Efficiency | 200 W |
| Arm Type | Fencing Arm |
| Protection class | IP54 |
| Operation Lifetime | ≥ 5 Million times |
| Boom Length | 6 Meters |
| Gross Weight | 120Kg |
| MOQ | 4 set |
| Application | Level Crossing, Restricted Areas, Draw bridges, Toll Plaza, Government Offices, etc. |
Two Fence Barrier Feature:
- Fast and smooth opening and closing (speed is adjustable)
- Reliable 24V DC motor with link movement.
- Designed for intensive use
- Auto reverse at any time if it hits an obstruction.
- Loop Detector connecter is available.
- Wireless remote control open/ close/ stop.
- InfraredPhotocells connector is available
- With a curved crank arm three-lik movement structure, the operation is stable.
- Counting Interface.
- Anti-collision alarm device (optional).

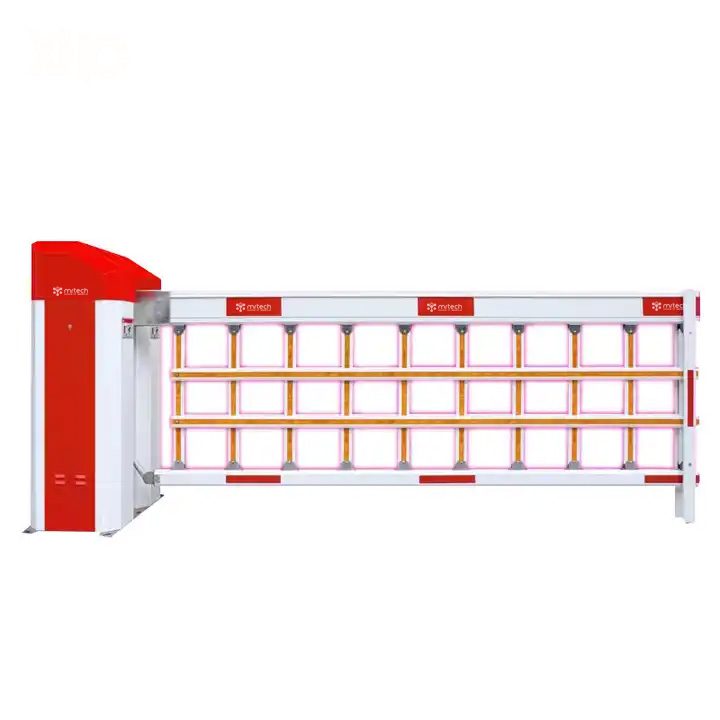

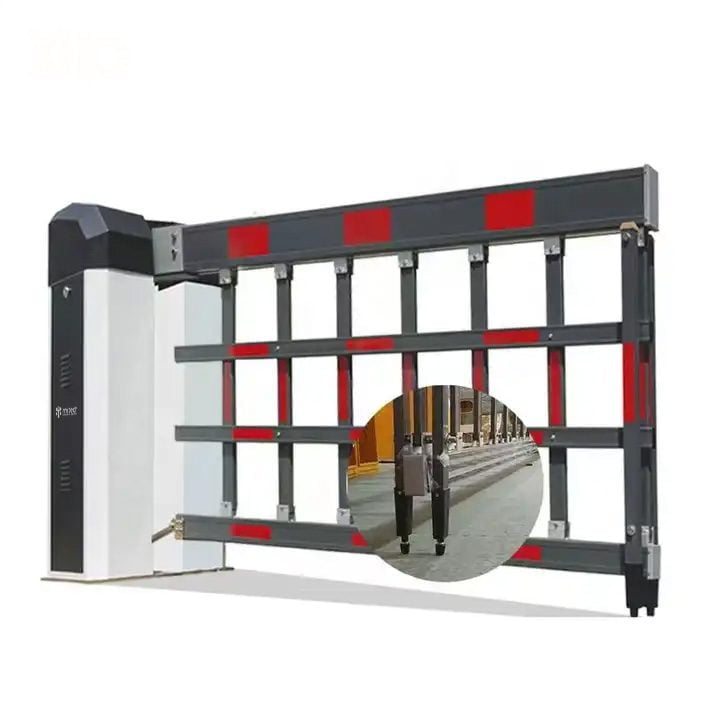

Two Fence Barrier
Optional Accessories Systems:
- Bluetooth controller.
- Wi-Fi mobile access Controller.
- Face Recognition.
- Photocell sensor.
- license plate recognition
- Wi-fi USB Controller.
- Loop Detector
- Anti-collision alarm device
- RFID with Detector.
- Voice commands Through Google Assistant, Alexa, and Siri.
