Modern Design Aluminum Panel and Glass Panel Combination Sectional Garage Door
Features：
-  Power：800N,1000N,1200N,1500N,1800N
- Â Doorman brand for default, Germany Avanti brand or American brand Lift master or other brand is optional, or If you don’t need a motor, also no problem
- Â Standard configuration: 2pcs of remote control, other sensors are optional: wall switch, photocell, Bluetooth card, password
High-quality door opener：
Aluminum frame color: white, black, beige, dark grey, light grey, bronze, brown in stock
Other colors need to be customized
Products Description Specification
1. All the products we produce have to go through three strict tests before packaging: raw material cutting test, production process inspection, and finished product debugging. 2. Provide customized services according to every requirement of customers, we will try our best to achieve 100% customer satisfaction.
| Item | Glass Garage Door Frameless Aluminum-Plastic Composite Panel Aluminum Garage Door, Glass Garage Door |
| Place of Origin | India |
| Brand Name | Mr. Tech |
| Model Number | MR-GGD425 |
| Size | W240″ * 130″ inch and Customized Size |
|  Various types of sizes | Available Customer Requesting |
| Door weight | 18-25kg/sqm |
| MOQ | 5 SET |
| Operation | Automatic, Infrared Remote Control, Hand Chain, Manual, Semi-Automation |
| Additional hardware | Remote control, Motor, Track, hinges, sealing strip, etc, (provided as requested) |
| Door Operator | Mr. Tech brand or Germany Avanti brand (800-1800N), with two pieces of remote control and emergency lock for standard, other sensors can be optional: wall switch, Bluetooth card, photocell, and password panel |
| Optional Door opener | Â MR.TECH GARAGE DOOR OPERATOR: 800N / 1000N / 1200N / 1500N / 1800N |
| Working condition | -40℃ to 70℃ |
| Wind resistance | 62-85km/h |
| Safety device | Anti falling device |
| Door Material | Tempered Glass or polycarbonate panel Aluminum Alloy + Aluminum-Plastic Composite Panel (ACP) Anodised Aluminum, |
| Optional panel material | Double layer 40mm thickness aluminum alloy profile, Aluminum-Plastic Composite Panel (ACP), Steel/Wood/Plexiglass/Glass |
| Opening Ways of Method | Rolling Pull, Sectional, Sliding up(overhead), Sectional roll up, and sliding Electric, manual, and remote control |
| Safety protection system | automatically stops when the door goes up and automatically rebounds when it falls if meets any obstacle |
| Thickness of aluminum | 2.5mm |
| Thickness of ACP | 4mm aluminium-plastic composite panel |
| Glass Type | 5mm transparent/frosted/coated toughened glass/Clear Glas/Frosted Glass/Obscure Glass,5mm+6A+5mm Hollow double glazing |
| Seals | Thermal Break, Header Seal, Section Joint Seal, Bottom Seal |
| Surface Finishing, Treatment | Finished, Smooth, frosted |

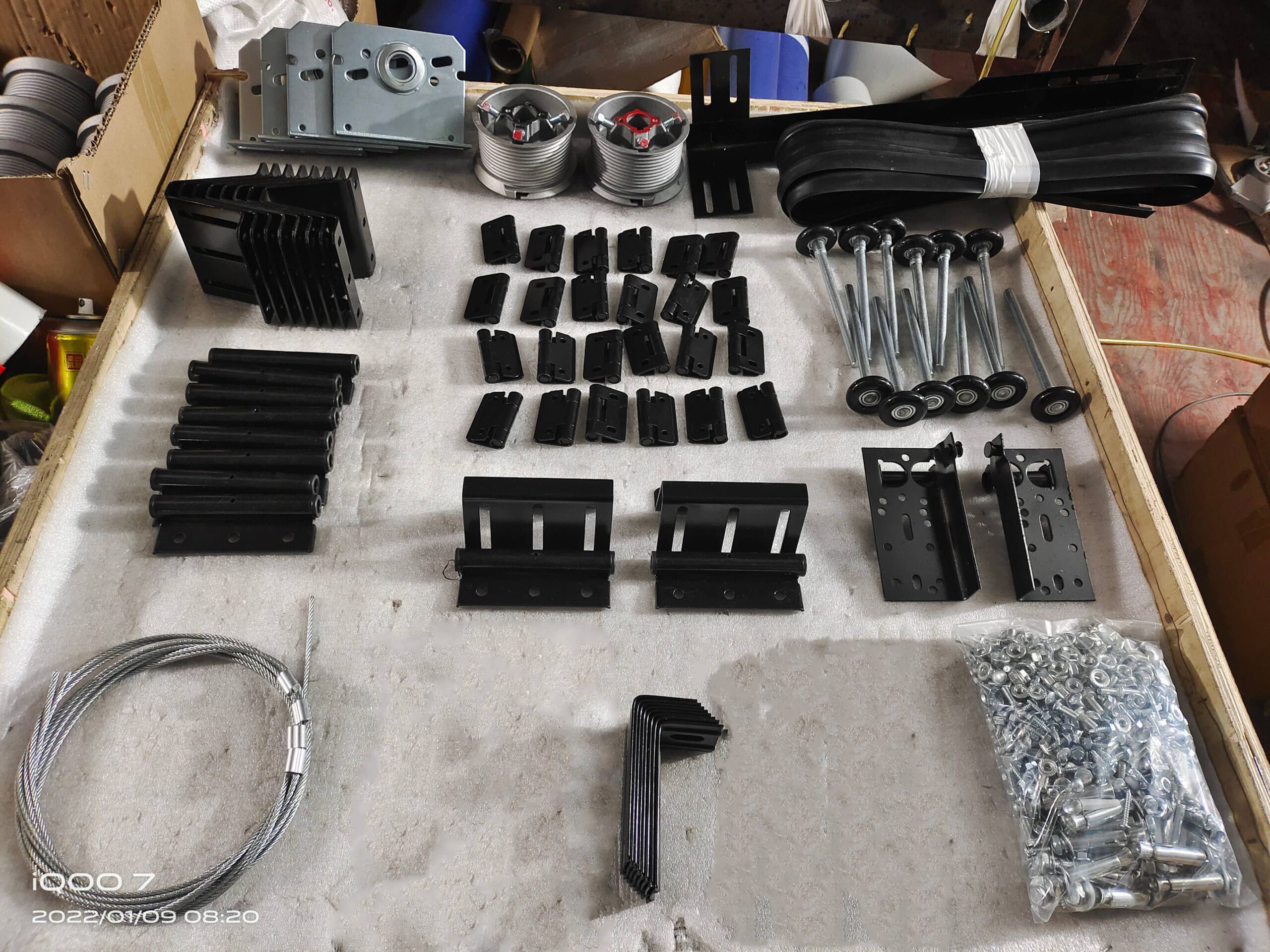

| Hardware | German, Chinese Hardware, And So On High quality galvanized steel hardware ( full set hardware for the door ) |
| Hinges | 2.5mm Plate Galvanized Steel |
| Rollers Accessories | Standard (2″ or 3″), Heavy Duty (2″ or 3″) highly strengthened accessories |
| Track | Galvanized Steel/Aluminum/Stainless Steel |
| Pedestrian door | Optional, but to ensure safety, we can agree to open pedestrian as long as the door opening height reaches 3m (9.8ft). |
| OEM/ODM | Acceptable |
| Applicable width size | 6.096m for max width |
| Wind resistance | 62-74 km/h |
| Color of panel | Powder coated White/Black/Grey/Brown/Silver or other special color(All The Color Can Be Customized) |
| Warranty | 1 year for doors, 5 years for motors |
| After-sale Service | Return and Replacement, Online technical support, Free spare parts |
| Project Solution Capability | total solution for projects |
| Drawing Design | According to Your request |
| Application | Garage Door For House Building Residential/Garage/Villa/Commercial etc. |
| Feature | Electric/Beautiful/Quiet/High Quality/Durable/Safety/Fast high durability/ heat preservation/thermal insulation/sound insulation etc. |
| Function | Anti-theft/Heat Insulation/Sealability/Windproof/Sound Insulation/Privacy-protected etc. |
| Service | Personal Order are acceptable |
| Project Solution Capability | total solution for projects |
| Package | Door panel, motor, and other accessories, LCL: plywood case, FCL: Strong carton |
| Optional Accessories for MR.TECH GARAGE DOOR OPERATOR | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Characteristics of Overhead Garage Door:
Modern Design Aluminum Panel and Glass Panel Combination Garage doors are fitted with a quiet motor as standard, opening and closing your door reliably. The motor foils break-in attempts with its powerful integrated anti-opening lock.
Product Features
1. All the products we produce have to go through three strict tests before packaging: raw material cutting test, production process inspection and finished product debugging. 2. Provide customized services according to every requirement of customers, we will try our best to achieve 100% customer satisfaction.
|
Operation
|
Automatic, Infrared Remote Control, Hand Chain
|
|
Material
|
Anodized Aluminum, Tempered Glass
|
|
Type
|
Garage Door For House Building, For Commercial, For Project
|
|
Construction
|
Powder-coated/ Anodized aluminum frame with Tempered glass panel
|
|
Glass
|
5mm Transparent Glass, Clear Glass, Frosted Glass, Obscure Glass
|
|
Seals
|
Thermal Break, Header Seal, Section Joint Seal, Bottom Seal
|
|
Color
|
White/Black/Grey/Brown/Silver (All The Color Can Be Customized)
|
|
Hardware
|
German, Chinese Hardware, And So On
|
|
Hinges
|
2.5mm Plate Galvanized Steel
|
|
Rollers
|
Standard (2″ or 3″), Heavy Duty (2″ or 3″)
|
|
Track
|
Galvanized Steel/Aluminum/Stainless Steel
|
|
Service
|
Personal Orders Is Acceptable
|
