High Quality Automatic Sliding Glass Doors Operator for Commercial

High Quality Automatic Sliding Glass Doors Operator for Commercial

Commercial Automatic Glass Sliding Door Operator With 65w Motor Door Opener MRD5 European Style Automatic Sliding Door Operator, Glass Slide Door Opener System Supplier

About this product

1. Effortless Operation: Our automatic glass doors offer a smooth and quiet sliding experience with a noise level of just 55 dB, making them perfect for households and commercial spaces where a seamless entry is desired.
2. Durable Construction: With an aluminum alloy material and a DC brushless motor, our doors are built to last, ensuring a long lifespan and minimal maintenance.
3. High-Speed Performance: The MRD5 model boasts an opening speed of 200-450mm, allowing for quick and efficient access to your space.
4. Customizable Options: Our automatic sliding doors come in various guide rail lengths (2.1m, 3m, 4.2m, 6m) to suit your specific needs, providing a total solution for projects of all sizes.
5. Reliable After-Sale Support: We offer online technical support and a 2-year warranty, giving you peace of mind and ensuring that any issues are promptly addressed.

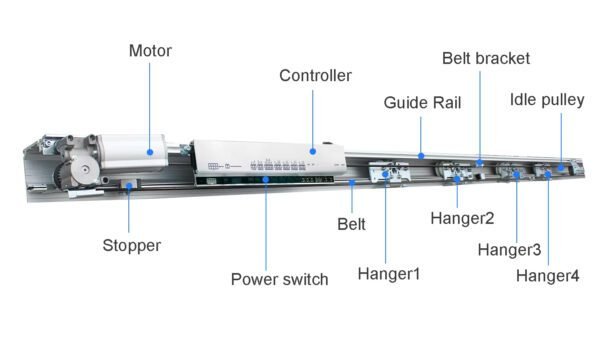

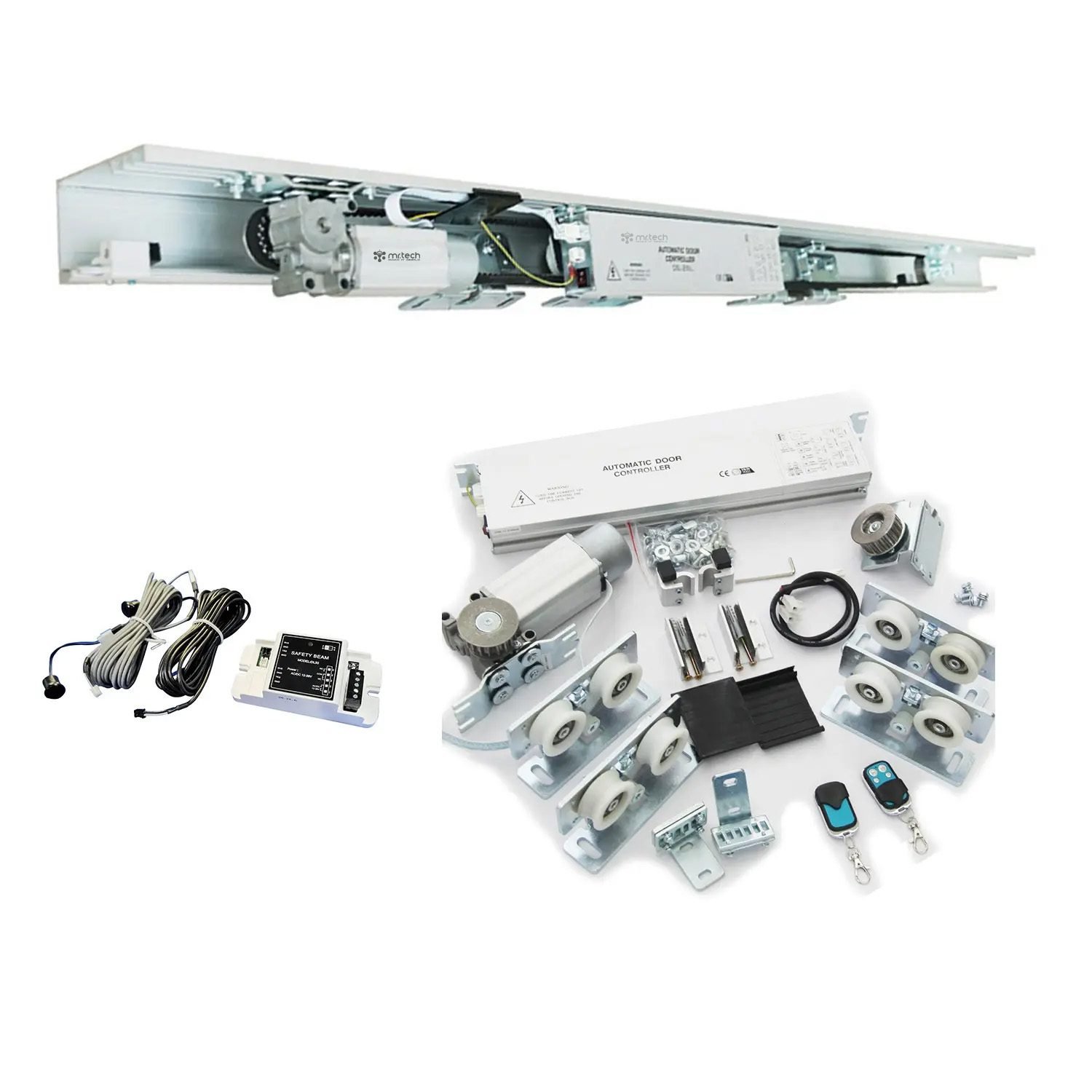

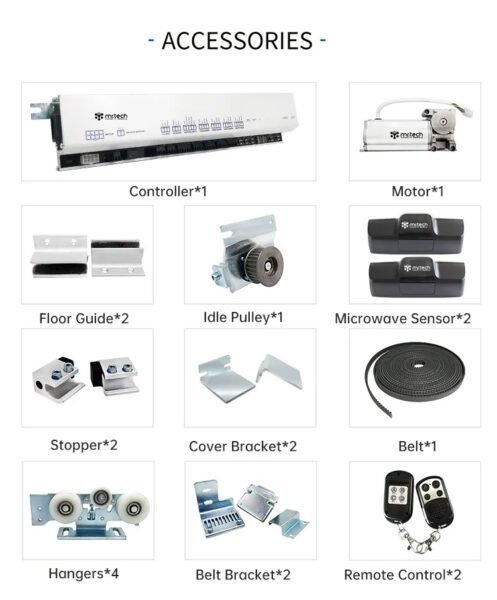

European Style Automatic Sliding Door Operator Includes

Product Advantage

1. Microcomputer control system, drive motor, control door body to operate according to the set mode; controller with 12V, 24V power supply, no need to add an extra transformer. Built-in security protection beam, double door interlock, and other interfaces.
2.  Brushless DC motor, surface matte treatment, sturdy and durable; with a safety protection circuit device, even if it is frequently opened and closed, it can achieve long-term trouble-free operation.
3.  The guide rail height is only 8cm, the installation space is infinitely utilized, and the rubber silent shock absorbing bar is added to make the operation more stable and quiet; the S5M belt is used to reduce the contact area and reduce the running noise.
4.  The Z4-class super-mute shaft is used to match the imported nylon wheels with a large diameter, which is more anti-slip and quiet.

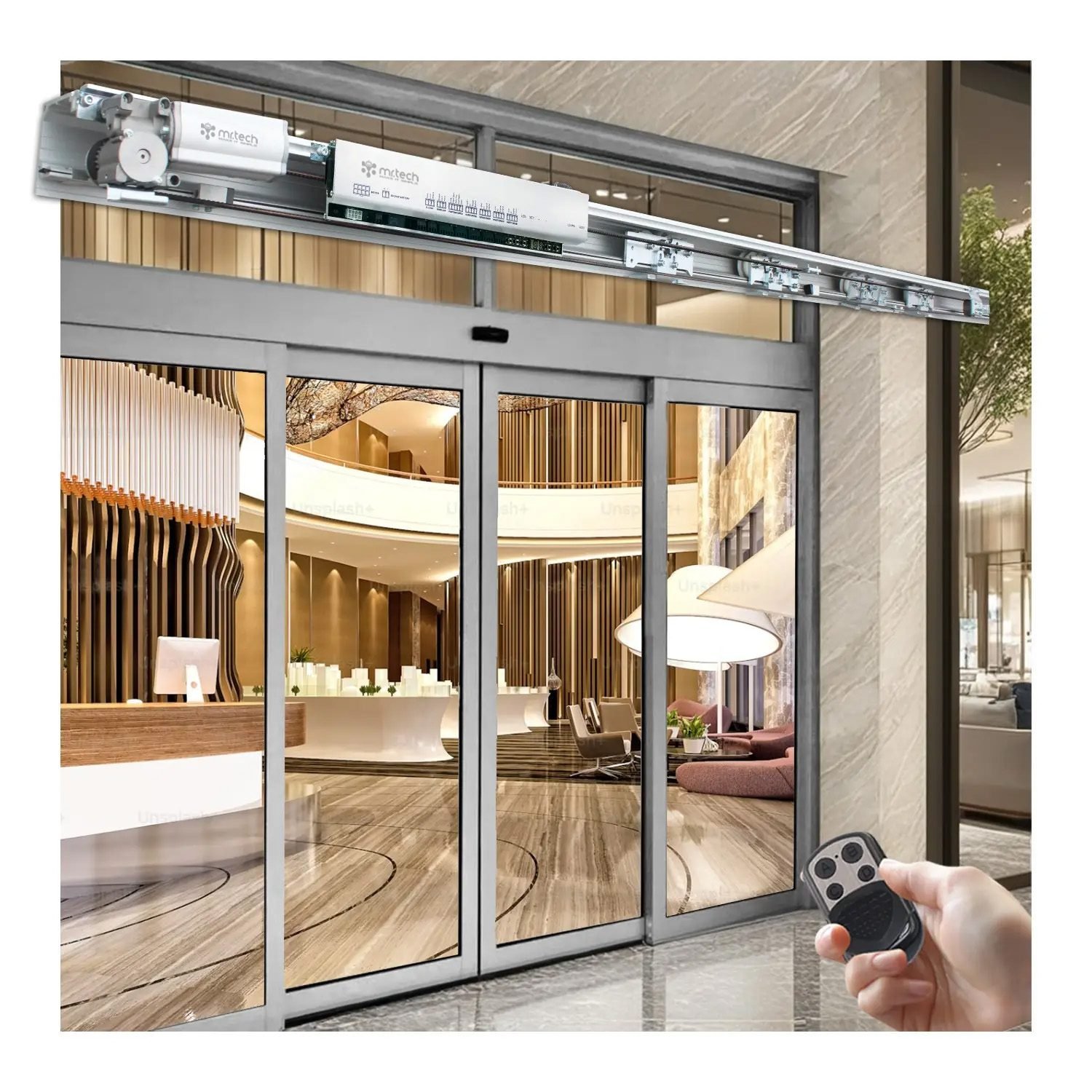

5.  Suitable for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, hospitals, and other places.

Industry-specific attributes Technical Data

MRD5 Automatic Sliding Door Motor：

A small high-power DC brushless motor (which has a longer service life and is more noiseless than a brush motor) is made of high-intensity aluminum alloy with a frosted surface. The whole sealing inner structure will not leak oil. Line protection device achieves long-term trouble-free operation even when open & closed frequently.

MRD5 Automatic Sliding Door Controller：

The automatic door microcomputer controller receives a signal from a sensor or other switches to drive the motor to control the gate moving right.

12V&24V built-in power supply controller saves the transformer. Devices like extra safety protection lines, entrance guard, disjunctive electric lock, backup power supply, double door interlocking and so on provide a better usage experience.

MRD5 Automatic Sliding Door Track：

Adopt 6063-T5 highly purified aluminum alloy craftsmanship, with a sand-blast oxide film thickness is above 8cm.

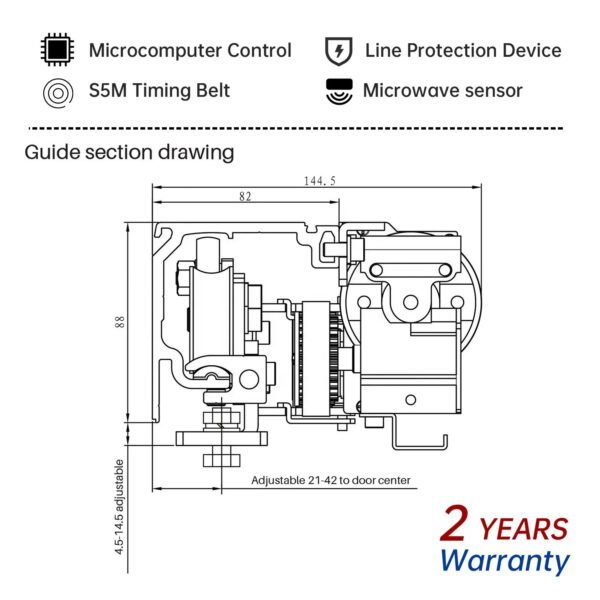

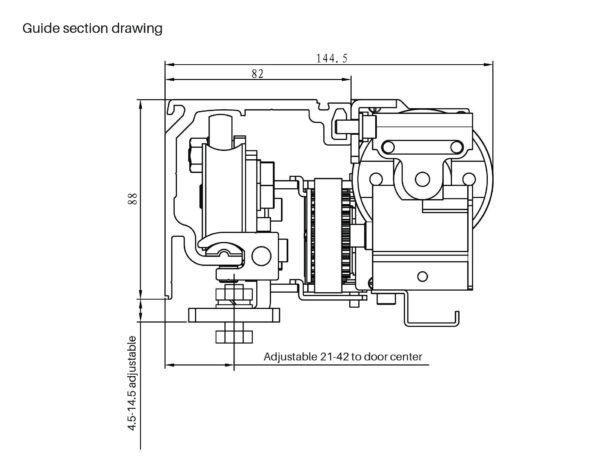

Track size：82*88mm, make the most of space. Split design anlaufflaeche with rubber damping strip achieves smooth running.

MRD5 Automatic Sliding Door Sensor：

Imported from Germany, a 24.125GHz microwave sensor module unaffected by temperature, humidity, with a maximum installation height reaches up to 4M, easy to install, with great antijamming capability.

MRD5 Automatic Sliding Door Hanger Piece

Prevent derail, Z4 rank ultslience axletree with huge imported nylon wheels makes noiseless operation.

MRD5 Automatic Sliding Door Remote

Multiple functions can be set to normally open, half open, or automatically open. Plug and play.

MRD5 Automatic Sliding Door Tailblock Driver

Noiseless design, firm and hard wearing without deformation, keeps the belt from shaking.

MRD5 Automatic Sliding Door Retainer

Thickened main body structure brings application safety and a long service life.

MRD5 Automatic Sliding Door Connection Frame

Strand tapered belt fixed form makes locating more accurate.

MRD5 Automatic Sliding Door Pendulum Stopper

Used on a frameless glass door, it can effectively fix the gate swing.

MRD5 Automatic Sliding Door Synchronous Belt

S5M belt reduced the contact area and lowered the running noise.
