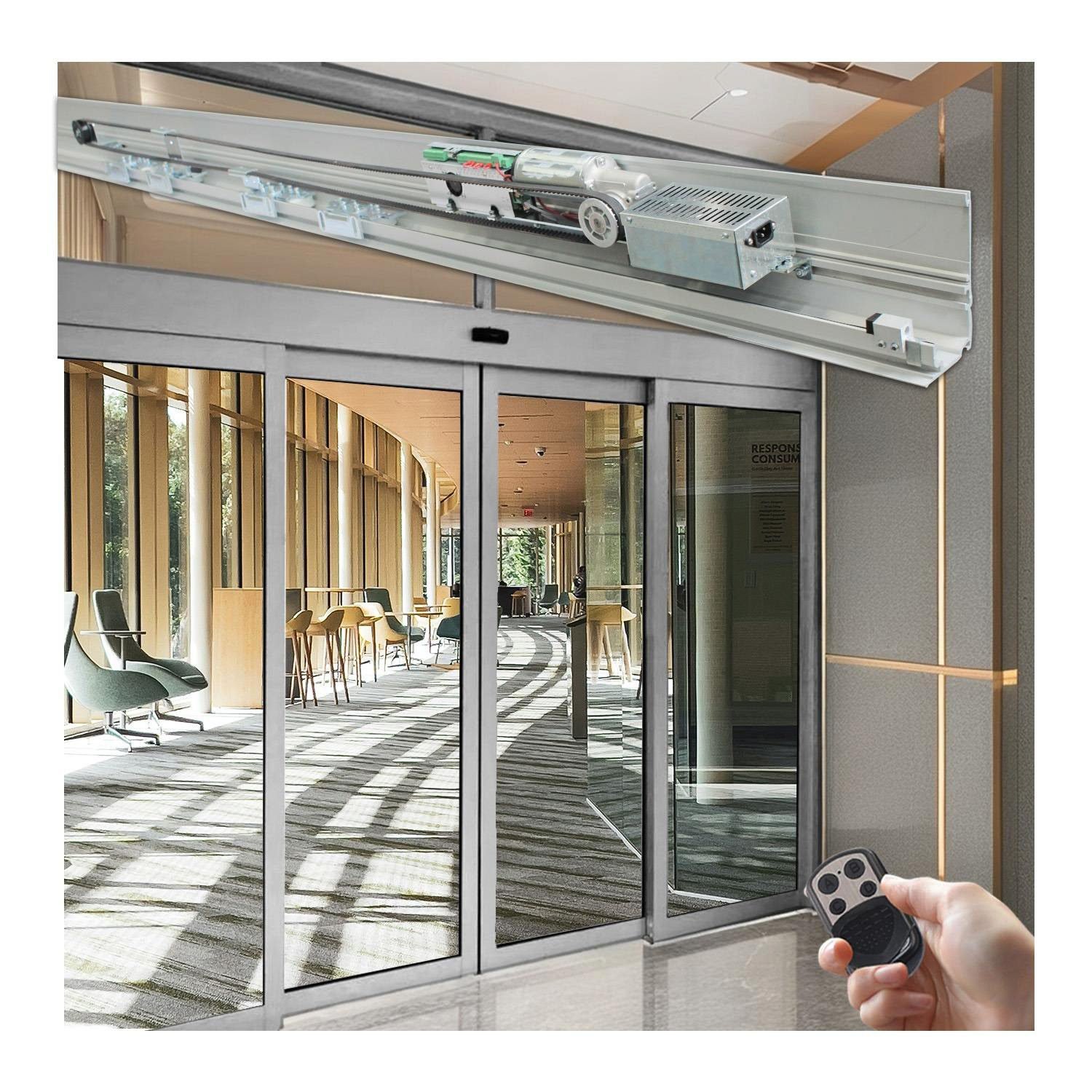

Sensor Glass Door Operators, Automatic Sliding Door System
The MRD20-ES 200 is a modular sliding door operator available in various track heights. Additional modules and options facilitate made-to-measure solutions for automatic sliding doors. To ensure a high level of safety,
Completely redesigned sliding door operator
The MRD20-ES 200 is a completely redesigned sliding door operator that corresponds to all the latest European and German standards and safety regulations. It encompasses a stylish and modern cover design, a motor that ensures a virtually silent operation, a microprocessor that automatically controls the opening and closing speeds of the door, an energy-saving power unit, and new programming functions allowing for quick and simple installation, set-up, and maintenance.
Modular design
The MRD20-ES 200 is a sliding door operator of modular design that can be tailored individually to prevailing functional requirements. The standardized mechanical components and the replaceable track rail can eb combined with different operators (consisting of drive and control unit, motor and power supply unit).
Technical Specifications
| product name | Affordable 200KG Door System Automatic Sliding Door Machine |
| Design Style | Modern |
| Model Number | MRD20-ES 200 |
| Door form | Single-door leaf / double-door leaf |
| Carrying weight | ≤1*200kg/≤2*160kg |
| Door width | 700-3000mm/800-3000mm |
| Power supply voltage | AC110-220V, 50/60Hz |
| Standard Size: | 4200mm |
| Rated Machine consumption power | 150W |
| Door opening travel speed | Door opening speed: 100-650mm/S(adjustable) Closing speed: 100-500mm/S(adjustable) |
| Hold Opening hours | 0-8S(adjustable) |
| Temperature range | -20 ~ +50°C |
| Manual opening and closing force | <40N,<50N |
| Humidity range | <relative humidity 85% |
| After-sale Service | Online technical support |
| Motor | DC brushless |
| Controller | Microcomputer control |
| Guide rail length(Optional) | 2100mm,4200mm,4800mm,5000mm,6000mm |
| Material | Aluminum alloy |
| Sliding noise | ≤55dB |
| Warranty | 2 years |
| Keyword | automatic sliding door system |
| Application | Hotel, Office Building, Supermarket, Hose |
Product Advantage
- Â Stylish design with a microcomputer controller that automatically controls the speed at which the door is opened and closed. Easy to install, set up, and maintain.
- The MRD20-ES 200 is a modular design of the sliding door unit that can be individually customized to meet functional requirements. Standardized mechanical devices that can be replaced with small rails that can be combined with different operators (including controllers, motors, and transformers).
- Â Parameterization via the control unit or manual terminal. Special function modules can be used in some special applications. Standard mechanical components are suitable for all door operators, and the guide rail can be replaced.
- Can be applied to emergency exits and escape routes ( panic function).
- Door operator provides a high efficiency and neat access control solution to those situations like offices or commercial buildings, banks, restaurants, retail stores, schools, hospitality, recreation centers, and other public sites.

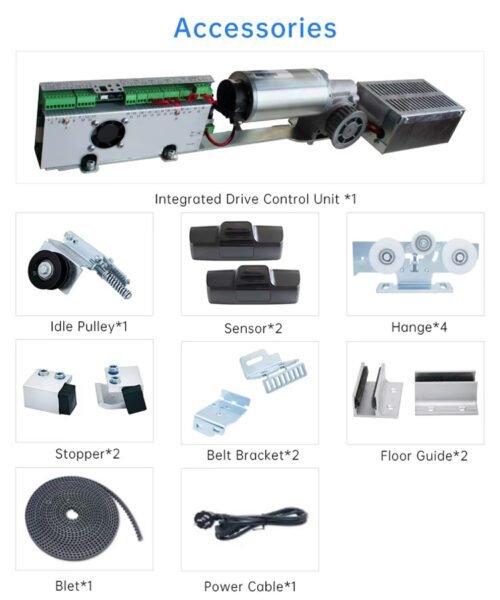

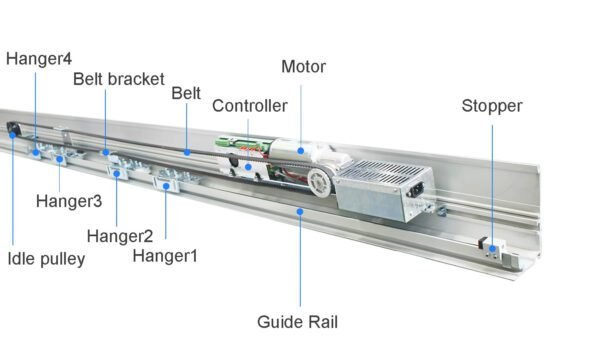

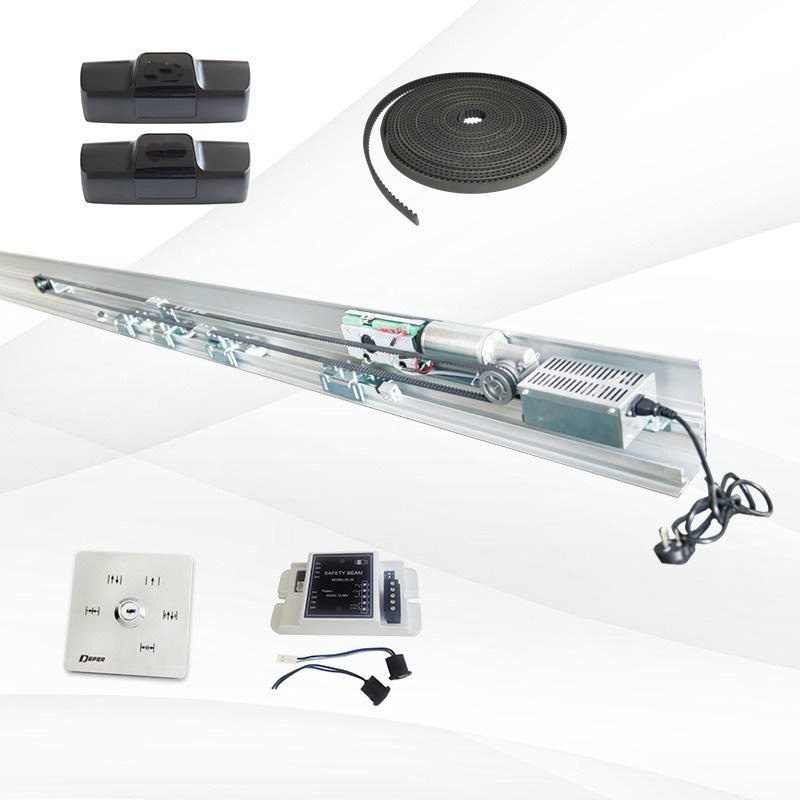

Automatic Glass Door Operators System Includes
| Components | Quantity |
| Glass Door Motor | 1 piece |
| Aluminum track | 2.1 meters/piece |
| Hanger roller bracket | 4 pcs |
| return pulley | 1 piece |
| timing belt | 7 meters/piece (1 piece) |
| track locator | 2 pcs |
| ground locator | 2 pcs |
| glass clamp | 4 pcs |
| Sensor | 2 |
| Remote control | 2 |
| capacity | 350KG |
| Cover plate frame | 1 |
| microcomputer | 1 piece |
