Swing gates are probably the most popular & widely used of all, as they present well and are very functional. They are ideal where driveway access is critical. The gates can be designed to swing either inward or outward.
We manufacture a precision range of automatic Motorised Swing Gates Motors in different compact designs, and tolerances and are extremely easy to install. These are specifically designed to suit all architectural designs and are provided with self-locking electromechanical operators. Ideally, all automatic swing gates are set up on a structural metal frame; good quality pivots (hinges) or wheels.
Specification:
| ITEM | DESCRIPTION |
| Brand Name | MR. TECH |
| Model Number | MR SWGM350DC |
| Type | Automatic Electric Swing Gates Motors |
| Name | Automatic Gate Opener with Remote Control |
| Material | Aluminum & Plastic |
| Power Supply | 220V AC to the control panel |
| Power to Motor | 24V dc |
| Average power consumption | 1.7A |
| Manual Override | Via override keys supplied |
| Actuator Length When retracted | 740mm |
| Actuator Length Fully expanded | 1080mm |
| Arm Stroke | 350mm |
| Opening/closing running time | 12-15mm |
| Max absorbed power | 144 (72w per ARM) |
| RF Frequency | Rolling code 433.92mhz |
| Max. Operating Current | 4A for maximum 10 seconds |
| Max. Gate weight | 450kg per leaf |
| Max gate length | 3.5 meters |
| Operating Temperature | -20ºc ∼ +50ºc |
| Duty Cycle | 20% |
| Motor Weight | 7.0kg |
| MOQ | 5 Set |
| Application | Residentials, Apartments |
- Electric Swing Gates Motors
- Automatic swing gates can work even under the most difficult conditions.
- Gates are specially designed with a top and bottom pivot mechanism
- Dustproof operating mechanism increases the life of our gates
- Our Gates leaves are free from sagging/bending
- All Swing Gates Motors are simple and reliable to operate
- With its anti-shearing shape, the driving arm allows the leaves to move in total safety.
- New mechanical solutions guarantee long life and high quality of its product
- Easy to install operator.
- Hand release with personalized key for emergency manual operation
- Available with hinged side gates for pedestrian use.
- Vertical safety edge can be incorporated to protect in case of any accidents.
- Various industrial gate designs available to suit clients’ choice
- Sandblasting, Hot deep galvanizing process, and painting can be provided
Advantages of Automatic Swing Gate Openers:
- The Control panel can connect flashing lights, photocells, backup batteries, solar systems, keypads, and so on.
- Controlling single or double-leaf motor is optional.
- Can adjust open and close door time.
- 24VDC backup battery can be input. (this is use a large controller, our standard controller is small size.)
- A high-speed operation can be adjusted.
- Setting extra remote control is easy.
- Automatic Swing Gates Motors Work with a Wi-Fi device to operate the gate on the Mobile Phone App.

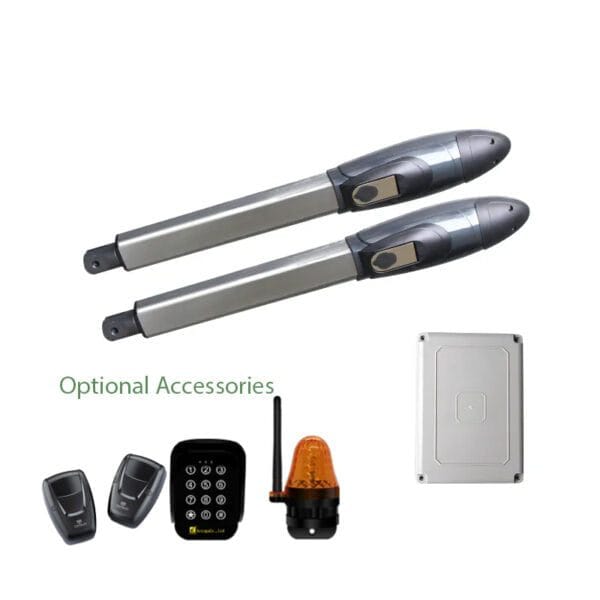

Included Kit
2 x Heavy-duty motors that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
