Swing Gate Operator, Gate Controller, Swing Gate Opener
Automatic Swing Gate Motor MR-SWGM300-DC24
Automatic Swing Gate Motor are available in various model the purpose is depends upon weight of the gate and opening width. The working temp -20º to +60ºC Top Performing technology and specification.
Automatic Swing Gate Motor MR-SWGM300-DC24
The Wifi Control swing gate opener MR-SWGM300 is DC 24v motor, automatic Swing Gate Motor can be connected with solar power system or back up battery to get power. Its Motor support single leaf gate max weight 150KG, max width 2 meters and its controller have display components, help user to set function easier.
Outside Control Box.

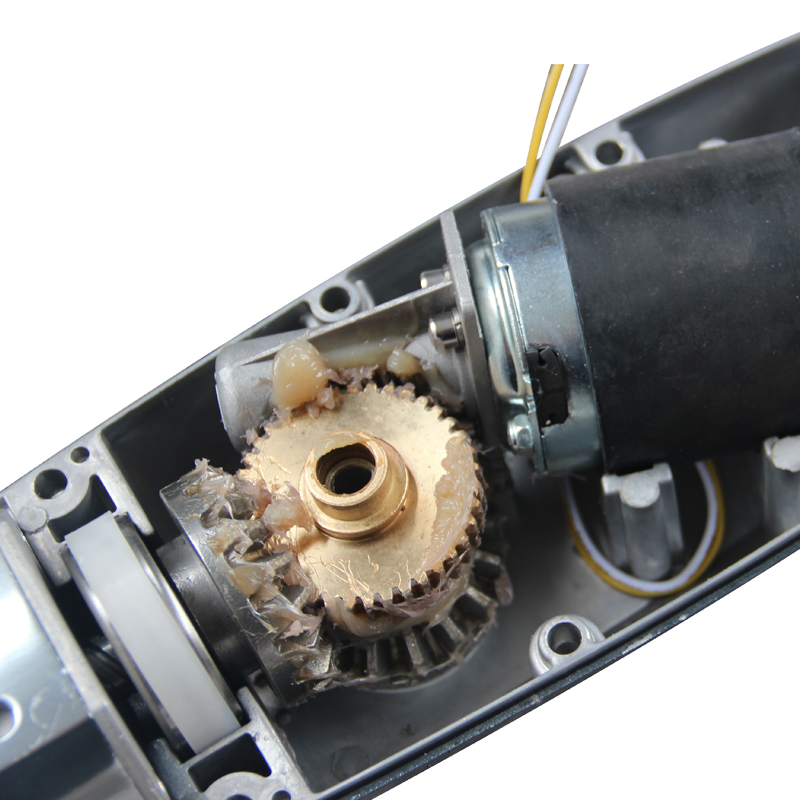

Gear Type: Worm Gear
DC 24V Motor with Mechanical Release.
Assemble Easily

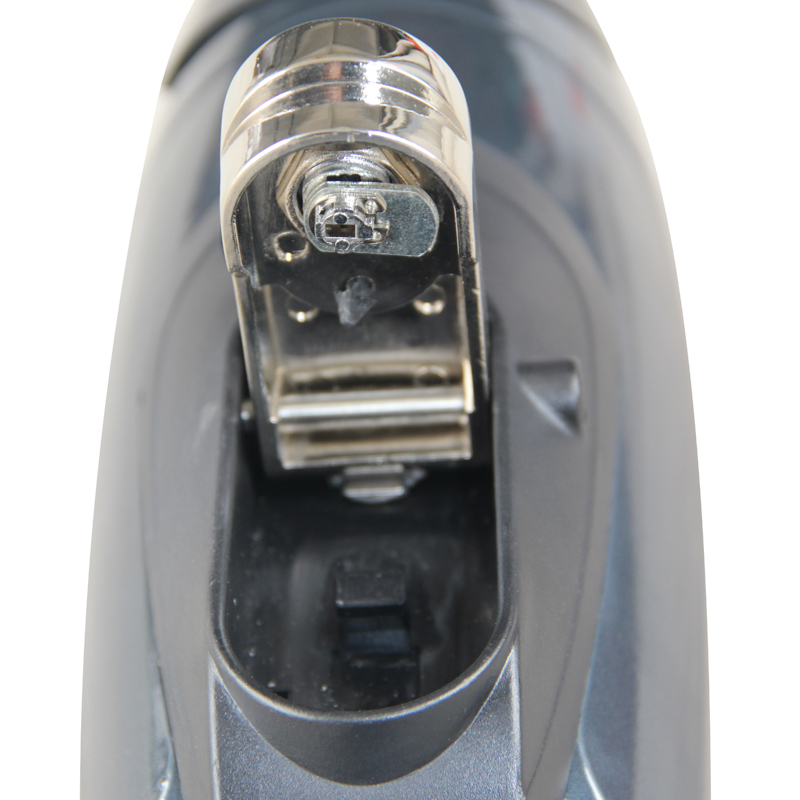

In case of power failure, the gate can be opened and closed manually after releasing the clutch
Specification:
| ITEM | DESCRIPTION |
| Brand Name | MRTECH |
| Model Number | MR-SWGM300-DC24 |
| Type | Automatic Gate Operator |
| Name | Automatic Swing Gate Motor |
| Material | Aluminum & Plastic |
| Power Supply | 24V dc |
| Max. Operating Current | 4A for maximum 10 seconds |
| Max. Gate weight | 300kg per leaf |
| Max gate length | 3 meters |
| Operating Temperature | -20ºc ∼ +50ºc |
| Duty Cycle | 20% |
| Motor Weight | 6.25kg |
| MOQ | 3 Set |
| Application | Residentials, Apartments |
| Accessories Included With Motor | Control Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, and Wall Mount Kit. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Features of Automatic Swing Gate Motor:
- Single leaf or double leaves operation.
- Metal Pinion gear driving design with low working noise.
- Automatic Swing Gate Motor can be Adjust the Opening/Closing interval time of double gate leaves.
- Auto-stop if any obstacles are detected during operation.

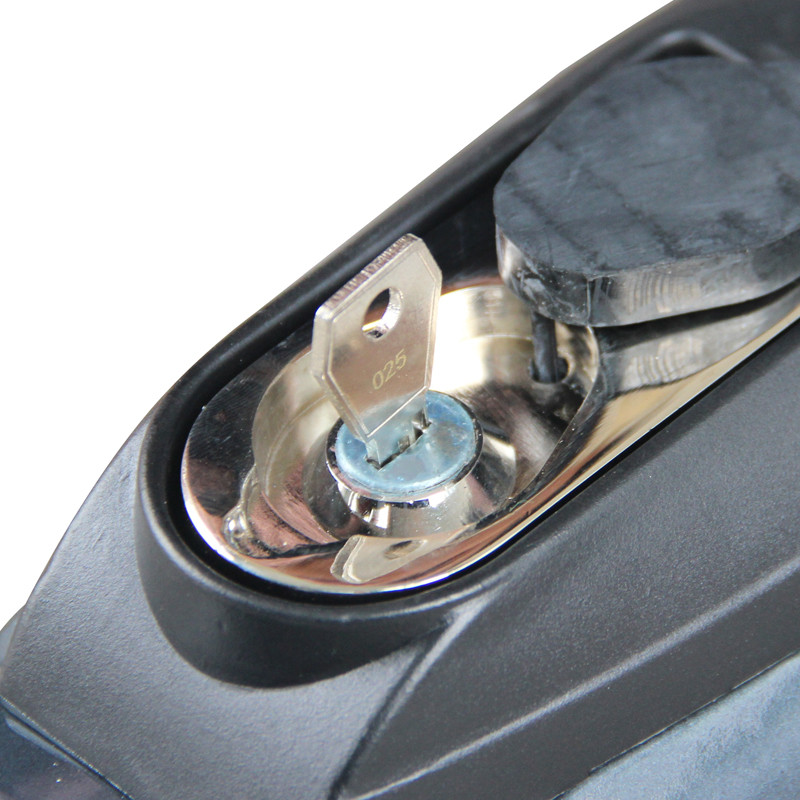

- Manual release with the secure customized key in case of power failure in automatic Swing Gate Motor
- Soft Start and Slow stop functions, which can extend the life of the gate opener and safer.
- Built-in Max motor running time adjustable for multiple Safety protection.
- Separately adjust the force of double gate leaves.
- Easy installation and low maintenance.
DC24v Solar remote wifi automatic double swing gate opener

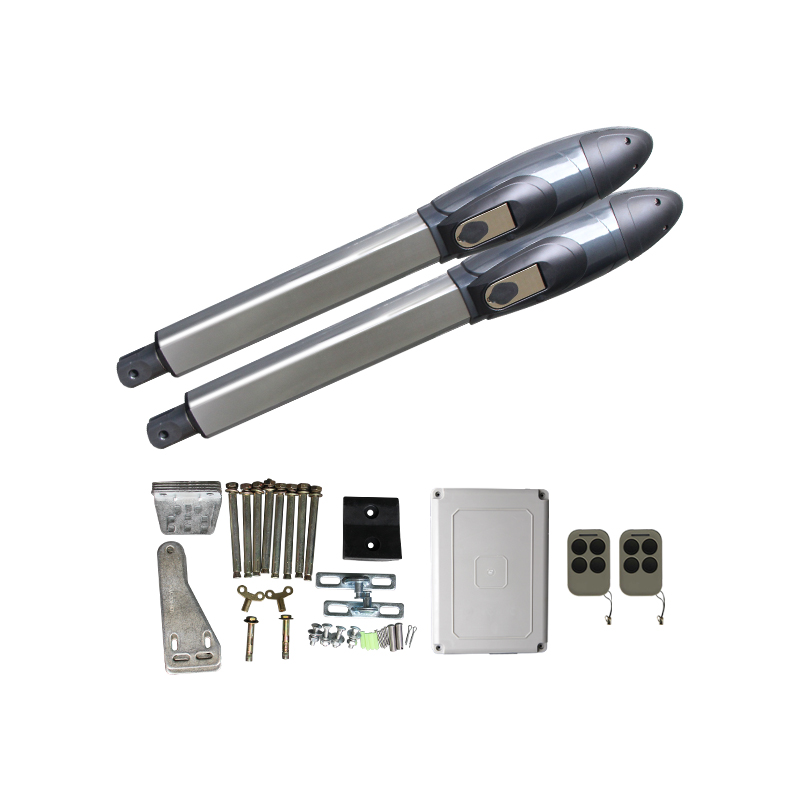

One set standard kit includes
Two Motors
Two Remote controls
One Hardware kit for installation
One set Control system
One User manual
Technical Specification:
| Motor | 24V DC Motor with a Mechanical Release |
| Motor Voltage | 24vV DC 144W*2 |
| Input Power | 220V AC±10% / 120V AC±10% |
| Arm’s Extended Speed | 2.4 cm/s |
| Arm’s Max travel | 300 mm |
| Continue running time | 5 Minutes |
| Max single-leaf length | 3 meters |
| Max single-leaf weight | 300 KG |
| Environment Temperature | -20ºC ∼ +50ºC |
| Protection Class | IP55 |
| Max gate open angle | 110 degree |
| ITEM | DESCRIPTION |
| Brand Name | MRTECH |
| Model Number | MR-SWGM300-DC24 |
| Type | Automatic Gate Operator |
| Name | Automatic Swing Gate Motor |
| Material | Aluminum & Plastic |
| Power Supply | 24V dc |
| Max. Operating Current | 4A for maximum 10 seconds |
| Max. Gate weight | 300kg per leaf |
| Max gate length | 3 meters |
| Operating Temperature | -20ºc ∼ +50ºc |
| Duty Cycle | 20% |
| Motor Weight | 6.25kg |
| MOQ | 3 Set |
| Application | Residentials, Apartments |
| Accessories Included With Motor | Control Board with box, Remote Control, Voltage transformer, Rubber Bush, Manual key, Wall Mount Kit. |
| Optional Accessories | Photo Sensor, Flashing Light, Bluetooth Controller, Wi-fi Mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID , Fingerprint, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
